B&G H5000 grafiikkanäyttö
000-11542-001 H5000 Graphic Display
H5000 grafiikkanäyttö
Viiden tuuman värinäyttö toimii myös auringonpaisteessa, ja sen näppärä käyttöliittymä on täynnä purjehdusominaisuuksia, kuten SailSteer ja lähtölinja. Lasin liimaus estää kondenssi-ilmiön ja parantaa kontrastia.
H5000 grafiikkanäytön ominaisuudet:
• LÄHTÖLINJA
? SAILSTEER
• WINDPLOT SÄÄTRENDIEN SEURANTAAN
• ÄLYKKÄÄT JA HELPPOKÄYTTÖISET VALIKOT
• KIRKAS VÄRINÄYTTÖ
• NMEA 2000 ® -YHTEENSOPIVA
• ERITTÄIN KESTÄVÄ
• HUIPPUNOPEA SUORITIN
B&G:n H5000-apuväline- ja autopilottijärjestelmä tarjoaa purjehdusominaisuuksia ja tehokasta kilpatekniikkaa huippunopean keskusyksikön, kätevän verkkopohjaisen käyttöliittymän, täysväri- ja 7-segmenttisen näytön ja autopilotin hallinnan voimin. Järjestelmän älykäs keskusyksikkö käyttää ohjelmistoa kolmella tasolla (Hydra, Hercules ja Performance), jotta purjehdustavoitteesi täyttyvät.
Katso B&G suomenkielinen esite tästä!
H5000 Graphic Display
The H5000 Graphic Display is a powerful 5-inch, sunlight viewable, colour display with a straightforward user interface. Enjoy extremely wide viewing angles while displaying your sailing data in digital or graphical form. Designed for sailing, it is packed with unique features including SailSteer, Start Line, WindPlot, Laylines, MOB and more. It is glass bonded for zero condensation and enhanced contrast. NMEA compatible, use the Graphic Display as the main visual information hub of your H5000 system or as a full-colour alternative to a Race Display.
The Display uses an incredibly small amount of power, yet is the brightest and clearest display in its class. Refresh rates of up to 10Hz are possible using its modern ARM processor. It is packed with the popular features of its predecessor, the H3000, while modernising it for simpler operation and enhanced graphic capabilities. With no external metal parts, the durable H5000 Graphic Display is completely corrosion resistant. And, after dark you can dim the backlight to almost zero for outstanding low light viewing.

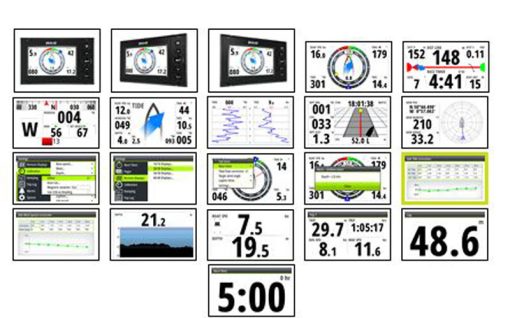

? Unique Sailing Features: SailSteer, Start Line, WindPlot for tracking weather trends, Laylines, MOB and more to enhance your racing or cruising experience
? Smart, Straightforward Menus: Completely redesigned operating system provides straightforward access to powerful, easy to understand, sailing features.
? Bright, Colour Display: Tough bonded glass, AR coated, 5-inch colour display; sunlight viewable by day and with backlight dimming down to almost zero for comfortable night time viewing
? Seamless networking: The H5000 Graphic Display is NMEA 2000® compatible for ease of integration into H5000 systems and your existing network.
? Tough design:built to last: Tough, corrosion free, thermoplastic and glass construction providing you with the peace of mind it can weather the elements – whether the spray of the race or the heat of the sun
? Ultra-Fast ARM Processor: Fast, modern ARM processor provides the power to deliver smooth graphical displays at refresh rates of up to 10Hz.
Overview
Display Size:5” widescreen
Resolution:480 x 272
Backlighting:LED
Operating Voltage:12V DC nominal (powered from network)
Warranty:2 Year (3 Years with +1 Advantage)
Display
Display Resolution:480 x 272
Display Type: Colour TFT LCD
Display Backlighting:Enhanced LED
Backlighting Levels:TBC
Display Size:5” Widescreen
Technical/Environmental
Waterproof Standard/Rating :IP67

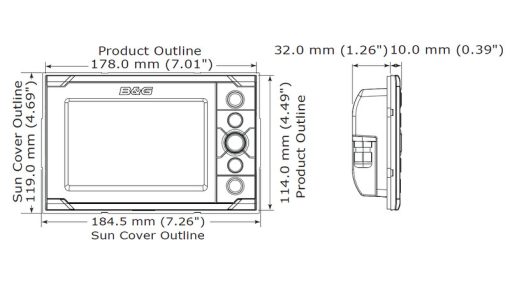

Product Width:178mm
Product Depth:8mm (visible front), 32mm (rear including all cables)
Product Height:114mm
Power Power Supply (Supply Voltage):12V DC nominal (powered from network)
Networking Connectors
Network:1x Micro-C connector on flying lead
Other
Languages:TBC
70907-13294-001, 70908-11549-001, 70908-11543-001,
| Paino | 0.6 kg (kilogramma) |
|---|
