Genoa car 42 , pin stop- Genoa vaunu PinStop
Sku. 444-151-01

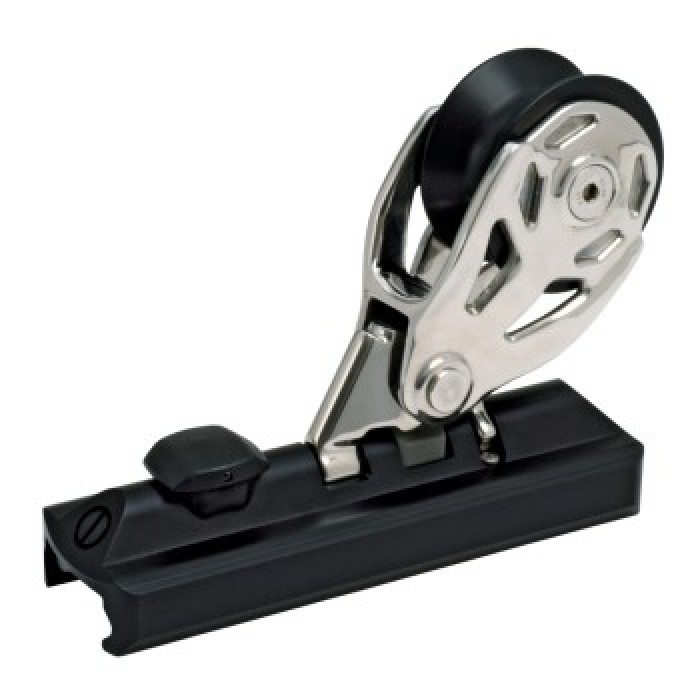

System 42 – Genoa Pinstop Car
The Genoa Sheet Car 42 is black anodized aluminium with a spring loaded Pin-stop function. The ø80 mm V-shaped composite sheave sits in a stainless sheave holder supported by a rubber stand up.
System: 42
SubType: pinstop
Safe working Load: 2750 kg
Breaking Load: 5500 kg
Pinstop: 1
Purchase: 0 (N:1)
Length: 220 mm
Width: 69 mm
Seldén system 42 can be used for boats up to approximately 65′.
Main Sheet Features
The main sheet car is black anodised, extruded aluminium and runs on Torlon® ball bearings.
Ø50 mm plain bearing Acetal sheaves and composite sheave houses for control lines.
Cam cleat 38 used on end controls.
AISI 316 mirror finished stainless toggles for Seldén PBB 80 and RBB 80 blocks.
The toggle/sheet block is supported by a rubber stand-up collar.
End controls with rubber shock absorbers and integral beckets for control lines.
Suitable max size of control line is Ø10 mm.
Jib/Genoa Sheet Features
The genoa car is black anodized aluminium with slide rods and pinstop operated.
The sheave house of the genoa car is AISI 316 mirror finished stainless steel.
The Ø80 mm genoa sheave have plain bearings for vertical loads and Torlon® ball bearings stabilize the sheave when subjected to side loads.
| Paino | 0.957 kg (kilogramma) |
|---|
