GENOA CAR – T 40X8 MM TRACK

Antal genoa vaunu 160mm stopparilla T 40 kiskoon
623.492
GENOA CAR – T 40X8 MM TRACK

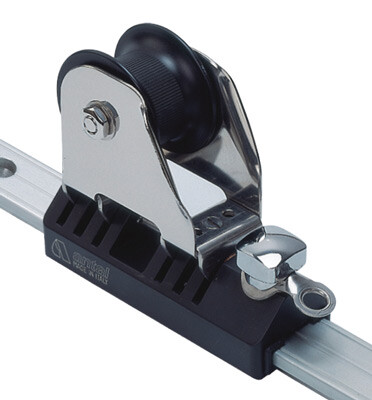

Hard black anodized aluminum slider with low friction Nylon sliding inserts. The revolving upper structure (± 50°) is made of AISI 316 S.Steel. The resin sheave is fitted with 2 side ball bearing. AISI 316 S.Steel pin with a lock-up position. Becket for remote control line

Length (L) 160 mm
Width (W) 60 mm
Overall height from deck 142 mm
Track dimensions 40 x 8 mm
Ø sheave (D) 75 mm
Weight 1,50 kg
A 74 mm
SWL 3800 kg
Becket Yes
Stop pin Yes
