Vertical fix, sheave Ø55, SWL 600 kg

Antal kiintetä nostin ploki maston kalukseen Ø 55mm HST
815.552

Suuniteltu nostimen johtamiseen mahdollisimman matalalle kannelle.

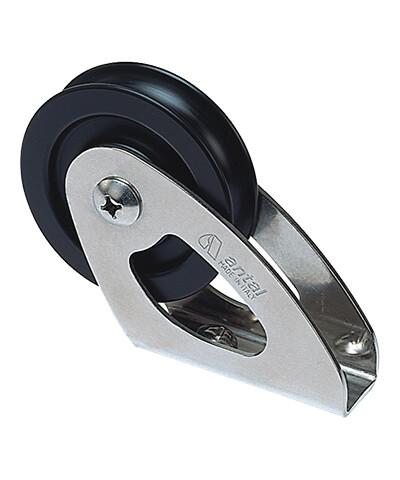

Antal Vertical fix, sheave Ø55, SWL 600 kg

This solution, designed for halyards at the base of the mast, keeps the line as close to the deck as possible.
A-316 s.steel base. All these models are fitted with a “self-captive” double side ball bearings.
Mounting screws not included.

Length (L) 88 mm
Width (W) 24 mm
Height (H) 67 mm
Ø sheave (D) 55 mm
Side bearing Delrin balls
Weight 0,12 kg
Ø max line 12 mm
A 17 mm
SWL 600 kg
Material S.Steel
Sheave material Plastic
Fixing screws 2 x Ø6 mm
