LSSITER: Laajakulma kääntäjä kansiploki Ø 50mm
Antal laajakulma taittopyörä
Tulip sarja laajakulma pylpyrät keskittää köyden jopa 40° kulmasta. Ideaali säätöihin joissa korkeus eroja.
Antal realizes a special line of deck blocks which mount Tulip sheaves. Tulip sheaves have a particular groove shape that allows a line lead angle range of 40°. Torsion loads are borne by large lateral ball bearings. Low friction is thus always guaranteed even when the line is deflected. Tulip deck blocks include Tulip foot blocks, Tulip organizers, Tulip vertical blocks and Tulip turning sheaves. Also spare Tulip sheaves are provided for custom applications. Mounting screws, nuts and washers included.
Single tulip foot block, sheave Ø 50mm, SWL 1100 kg
This sheave is fitted with 4 wide Torlon ball bearings, this is the best solution when it is necessary to redirect the line to any angle.

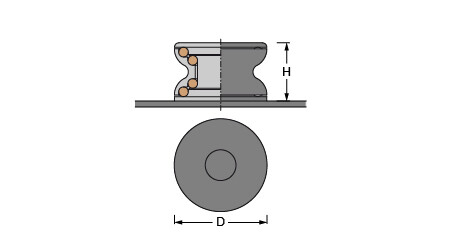

Width (W) :50 mm
Height (H) :40 mm
Ø sheave (D) :50 mm
Side bearing :Torlon balls
Radial bearing :Torlon balls
Weight :140 gr
Ø max line :10 mm
SWL .1000 kg
Material :Aluminum
Sheave material :Aluminum
Fixing screws :1 x threaded pin
Ø screws 10 mm
LSSISTER: 250821052, 250819070, 250819090, 250801050, 250801045, 250817050 Antal realizes a special line of deck blocks which mount Tulip sheaves. Tulip sheaves have a particular groove shape that allows a line lead angle range of 40°. Torsion loads are borne by large lateral ball bearings. Low friction is thus always guaranteed even when the line is deflected. Tulip deck blocks include Tulip foot blocks, Tulip organizers, Tulip vertical blocks and Tulip turning sheaves. Also spare Tulip sheaves are provided for custom applications. Mounting screws, nuts and washers included.
