MAIN TRAVELER 190 JOINT+ 2 SHEAVES

MAIN TRAVELER 190 JOINT+ 2 SHEAVES

Antal 4194 4RACE kuulalaakeri levanki vaunu 5:1

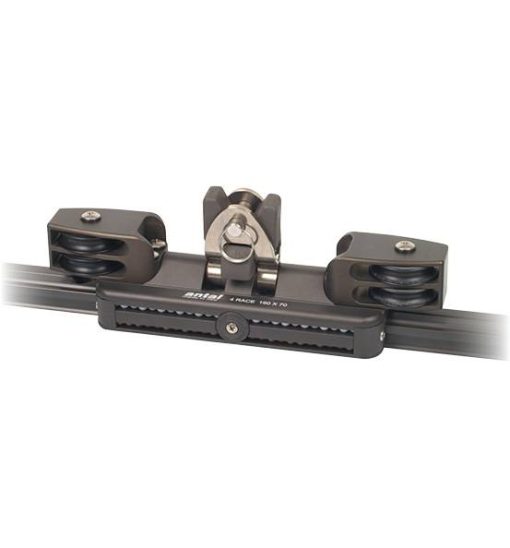

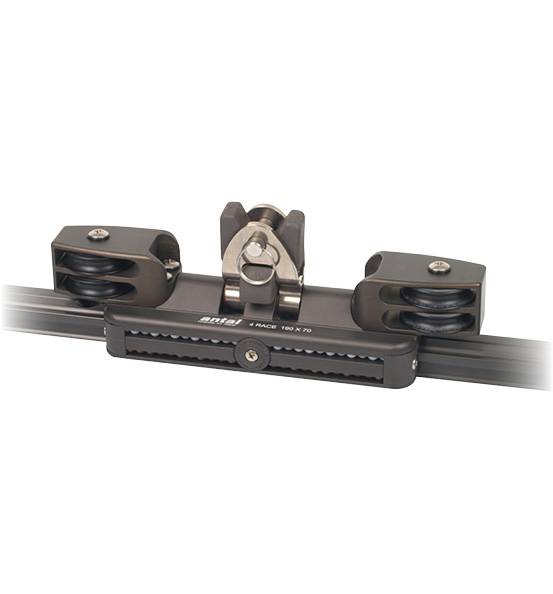

Car with 2 sheaves. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized (steel parts: AISI 316)

This traveller, 190 mm long (SWL – 1900 kg), is fitted with a special “stand-up” connection for one or two Antal sheet blocks (size 80 mm) and includes the “stand-up” rubber.
The same traveller is also available with a 10 mm shackle (for this case add SH to the model number).
The complete system ( 4992 ) includes 2 m long track. The sheet blocks (OPF 80, page 70) are not included. The blocks in the OPF series to be mounted on the 4Race cars must have a special long swivel head as described on page 63; add J2 to the block model code.

Length (L) 50 mm
Width (W) 70 mm
Track dimensions 31 x 21 mm
SWL 1900 kg
Ø control pulley 45 mm
Ø suggested block 100 mm
No. balls 114 x Torlon + 114 x Delrin
M 260 mm
