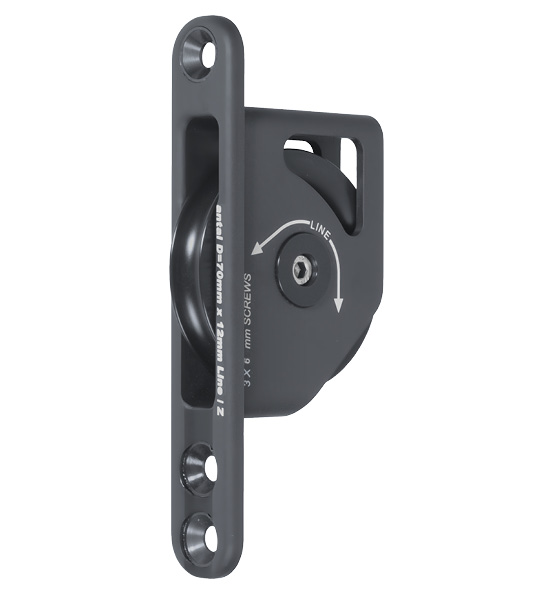

Mast block, sheave Ø 70, SWL 2000 kg
Tuotenumero: 00718/Z
Antal Exit box, 70 mm kehrä 12mm köydelle
Erittäin tukeva pitkä versio exit boksi hiilikuitu- tai alumiini mastoon
12 different sizes with diameters from 40 to 140 mm for working loads (SWL) up to 9000 kg. Hard black anodized aluminium frame with insulating washers for corrosion protection. Resin sheaves (aluminium sheaves for 100, 120 and 140 mm only) with composite fibre main bearing (not on size 40) and double side self-captive ball bearing.
Length (L) 158 mm
Width (W) 29,5 mm
Height (H) 53,5 mm
Ø shackle 91,5 mm
Ø sheave (D) 70 mm
Side bearing Delrin balls
Radial bearing composite fibre
Weight 230 gr
Ø max line 12 mm
A 92 mm
B 23 mm
SWL 2000 kg
Material Aluminum
Sheave material Aluminum
Fixing screws 3 x countersunk
Ø screws 6 mm

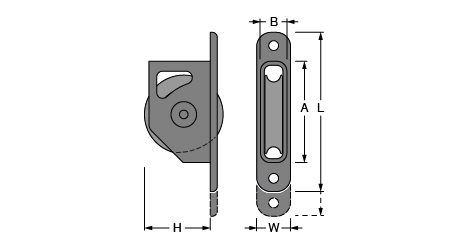

Katso Antal mast block mittapiirustus tiedot tästä!
