maston kiilakumi C175, F176, C211/F212 taka

Selden C175, F176, C211/F212, maston kiilakumi- taka
Deckring pad 17/25-55 AFT
530-213

Myydään kappaleitain, tarvitaan 2 kpl – molempiin takanurkkiin

Kiila kumia käytetään keskittämää ja asettaam kölin päällä seisovissa mastoissa kannen mastorenkaassa.

Sopii 533-029-01 mastorenkaaseen ja C175 ja F176 maston kanssa.
Sopii 533-022-01 mastorenkaaseen ja C211 ja F212 maston kanssa.
Sopii 533-023-01 mastorenkaaseen ja C245 ja F246 maston kanssa.
Sopii 533-024-01 mastorenkaaseen ja C285 ja F286 maston kanssa.

Etukumi 29011-530-210

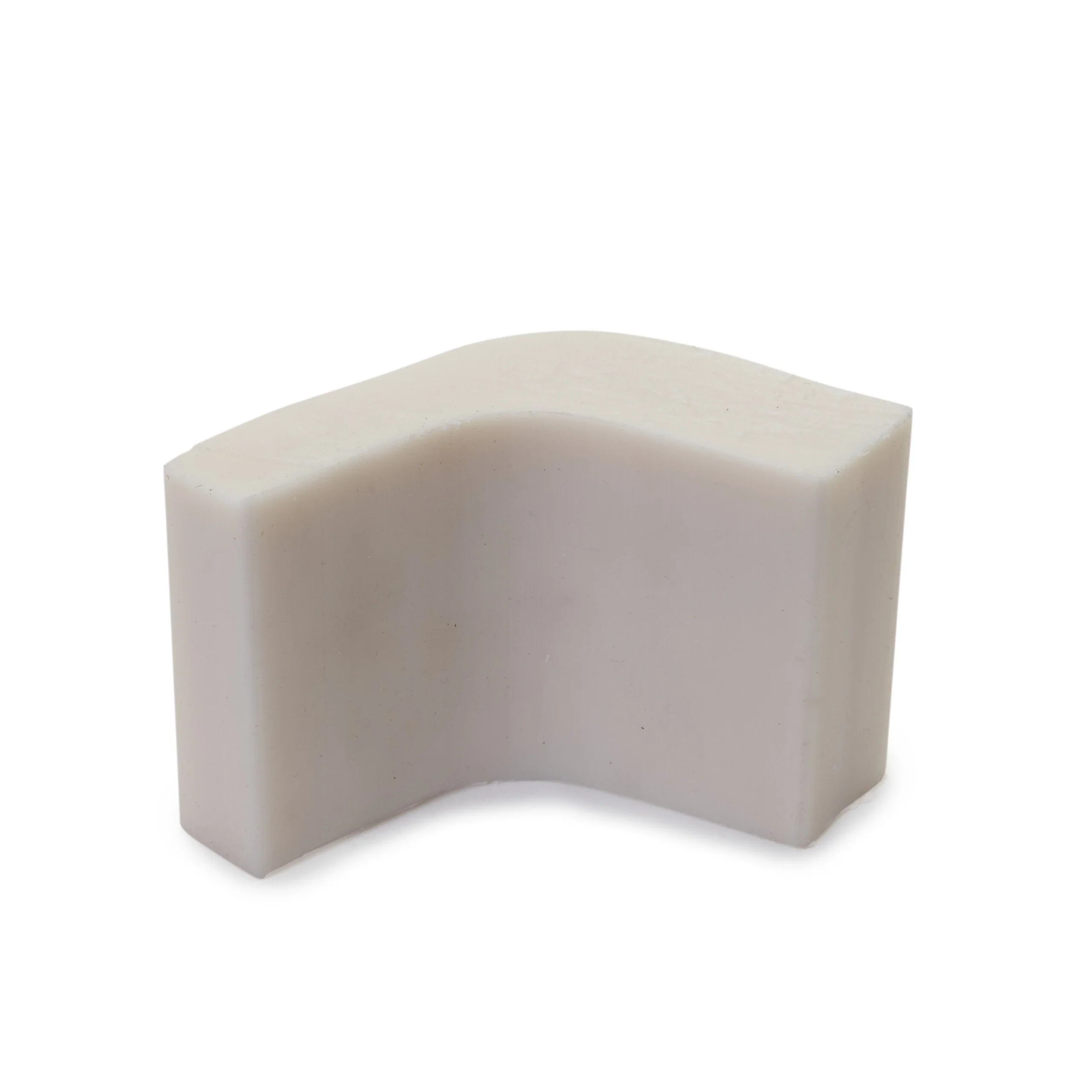

Aft Rubber Wedge (110×55 mm) for mast sections C175, F176, C211, F212, C245, F246, C285, F286

A keelstepped mast must be securely fixed in the deckring without any movement. This in order to prevent damages to the mast and to obtain the required integrity of the complete rig system. The mast must have an even curvature (convex forward) right down to the mast heel which is achieved by a correct mast heel location and orientation of the mast in the the deckring.

This rubber wedge is designed for C- and F-sections and associated deck rings. For information on what mast wedges to use for your individual mast and how to fit them, go to the Seldén website and Yacht Catalogue, Version 8, page 46.

Basically, put the aft wedges in place and then put the forward rubber wedge in the composite wedge and tighten it down. Wet the rubber with water/soap and it will slide down easier.
