Selden MSD alumiini läpilattavaunu 68 M10 lattalinkillä
Selden osanumero 511-717-03
Selden 6 pyöräinen Alumiini MDS lattavaunu 68mm, M10 linkillä lattapäätteeseen
Sopii SELDEN mastoprofiileihin C211, C227, C245, C264, C285 ja C304
Model: MDS 68 Alu
Toggle: M10
Mast: C211,C227,C245,C264,C285,C304
SWL+lat: 2.50 kN
SWL+long: 6.00 kN
RM30Mono-MH: 450
RM30Mono-FR: 335
RM30Multi-MH: 600
RM30Multi-FR: 470
MDS 68 – aluminium Full-batten car – for Seldén mast sections C211, C227, C245, C264, C285 and C304

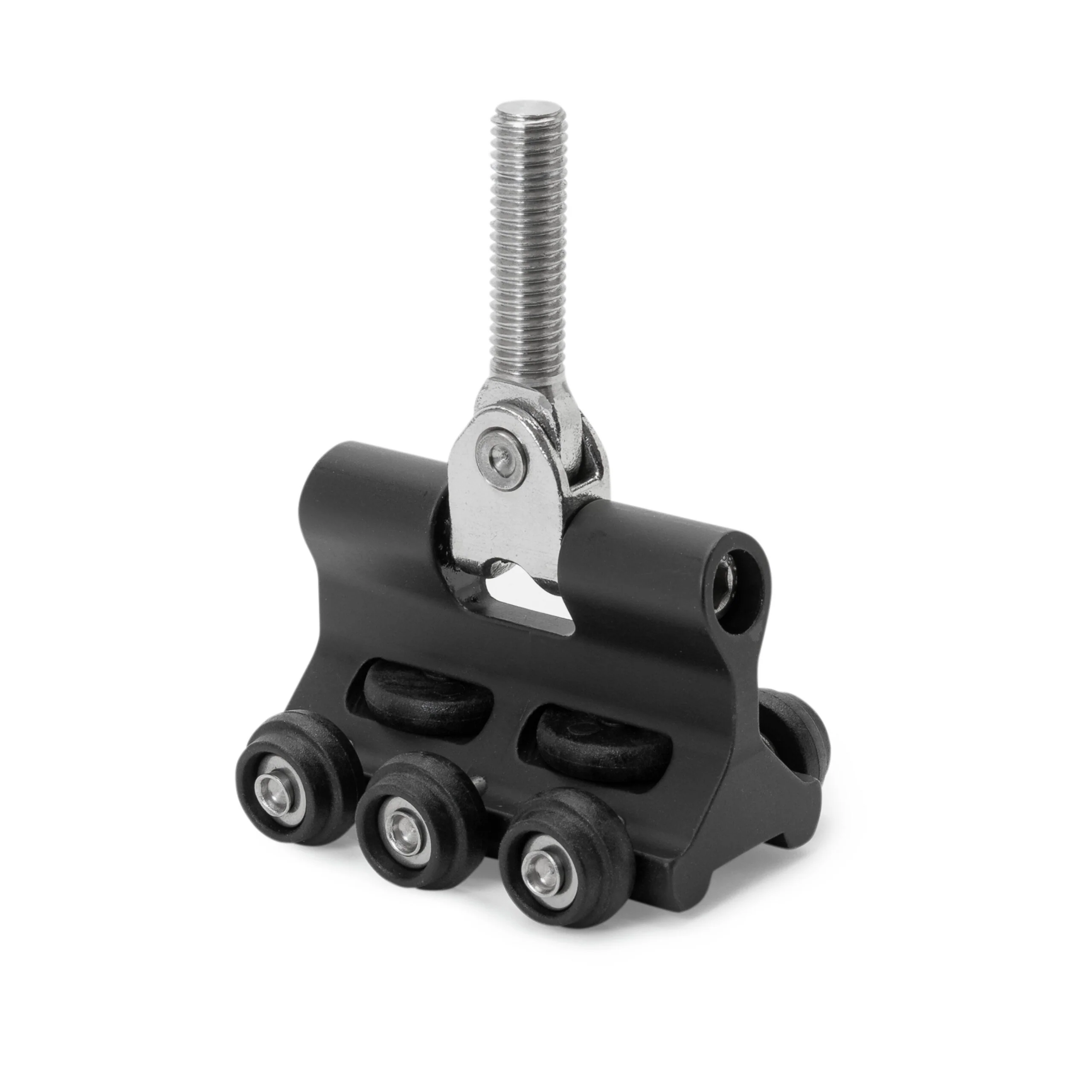

A six wheel, 68 mm long full-batten car in composite with M10 stud.
The MDS full-batten concept – Full support in all directions
As the name implies, Seldén’s MDS (Multi-Directional Support) cars are supported in all directions, making sail handling simpler.
A full batten always creates a side load on the cars, particularly when you release the halyard for taking a reef. Each MDS car has side-load absorbing wheels that run against the guiding flanges in the luff groove. The interaction between the mast section and the MDS car deals with longitudinal loads, as well as side loads. This is the essence of the MDS concept. Since the cars need no external track, there is also less weight aloft.
The MDS cars are easy to keep clean and are easy to install or remove from the luff groove.
The MDS system is a suitable complement to the Seldén Single Line Reef boom. With such a combination on board, you have a simple and easily manoeuvred system for handling the mainsail in all weathers.
| Paino | 0.165 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
