Antal Kansijärjestelmä 2x tulip 50 sarja
Tuotenumero: T520
Tulip organizer with 2 sheaves Ø 45, SWL 1000 kg
With Tulip sheaves organizers can also be made. Batteries from 2 to 6 sheaves are available, with diameters 45 and 60 mm. The 45 mm sheaves are in high resistance resin, with a “self-captive” double side ball bearing. The 60 mm sheave, with an axial bearing in composite fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon-coated aluminium and can handle very high loads.

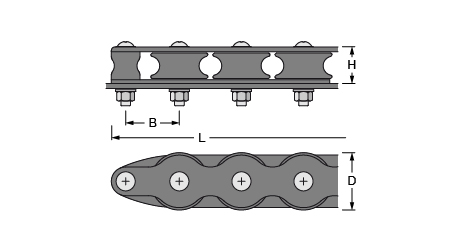

Length (L) 133 mm
Height (H) 42 mm
No. sheaves 2
Ø sheave (D) 45 mm
Side bearing Delrin balls
Weight 0,32 kg
Ø max line 12 mm
B 52 mm
Material Aluminum
Sheave material Plastic
Fixing screws 3 x round head
Ø screws 6 mm
Sheave SWL (kg) 1000
Organizer SWL (kg) 1200
