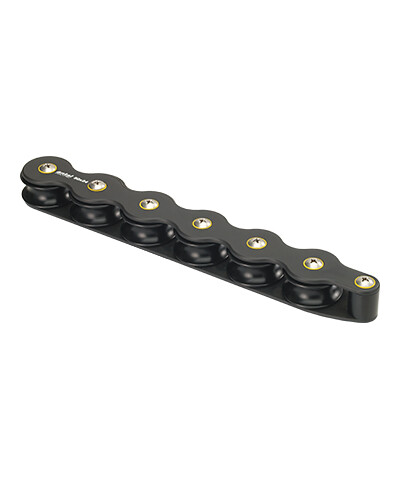

ORGANIZER 6 BB SHEAVES D50

Antal Kansijärjestelmä 6 kehrän 50mm sarja
D560

Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm. Double version also available, just add D to the model number. The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing. The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main composite fibre bearing and 2 side ball bearings.

Length (L) 341 mm
Height (H) 35 mm
No. sheaves 6
Ø sheave (D) 50 mm
Side bearing Delrin balls
Weight 0,74 kg
Ø max line 16 mm
B 52 mm
SWL 1200 kg
Material Aluminum
Sheave material Plastic
Fixing screws 7 x Ø8 mm
