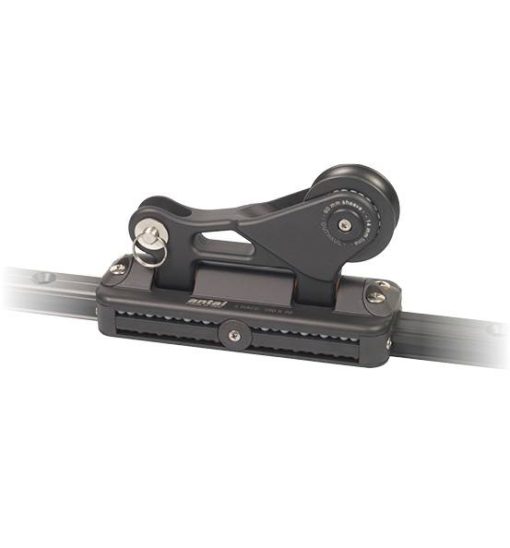

OUTHAUL CAR 190 WITH SHEAVE

Antal Outhoul Car 4 RACE with sheave 4190H

Car for outhaul. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized (steel parts: AISI 316).

Length (L) 32 mm
Width (W) 70 mm
Track dimensions 31 x 21 mm
SWL 1900 kg
No. balls 114 x Torlon + 114 x Delrin
