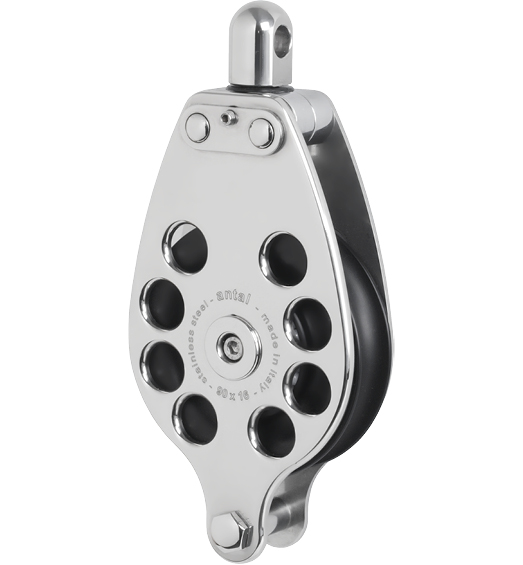

S STEEL BLOCK 90 WITH BECKET

LSINFO: S.steel classic series, single block with becket, sheave Ø 90, SWL 2500 kg

This stainless steel series, with a traditional design, is conceived especially for classic boats.

The line includes 6 different sizes with diameters from 65 to 180 mm and Safe Working Load up to 9000 kg. Perfectly polished AISI 316 stainless steel cheekplates and accessories, fully rounded corners for greater manageability, nuts and bolts replaced by pins and recessed screws to eliminate any protruding parts. The composite fibre sheave. The resin (aluminium on larger mod) sheave runs on the main Composite Fibre bearing and on a ground s.steel hub: low friction highloads – no lubricant required. The self-captive side ball bearing reduces the friction and makes disassembling, cleaning and maintenance very easy.

Ø sheave (D) 90 mm
Side bearing Delrin balls
Radial bearing composite fibre
Weight 0,85 kg
Ø max line 16 mm
SWL 2500 kg
Material S.steel
Sheave material Plastic
Shackle Mod. 010SS

LSSISTER: 250S0701 250S0702, 250S1202
