S.STEEL HALYARD BLOCK D32

Antal 2:1 HST Nostin ploki D32 -SWL 2200kg

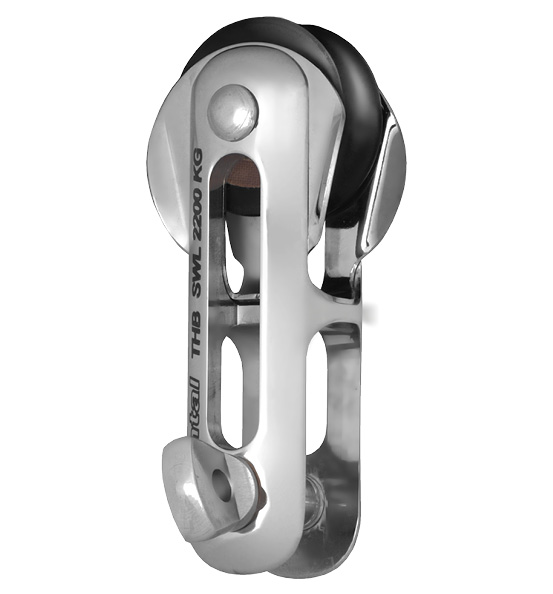

Twin halyard block, sheave Ø 32, SWL 2200 kg
Twin-halyard block” is specially made for a 2 to 1 main halyard. The very small sheave is aluminium made with a Composite Fibre bushing. The body is completely made in “High-resistance” stainless steel Nitronic 50. 4 sizes for breaking loads from 2600 to 10000 kg, for boats up to 70 ft

Technical characteristics

Attribute Value
Overall height from deck (H) : 18
Ø sheave (D) : 32 mm
Side bearing : Delrin balls
Radial bearing composite fibre
Weight : 0,15 kg
Ø max line : 12 mm

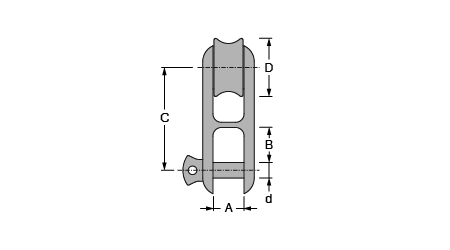

A : 18 mm
SWL : 2200 kg
Material : Steel Nitronic 50
Sheave material : Aluminum
B : 21 mm
C : 65 mm
d : 10 mm

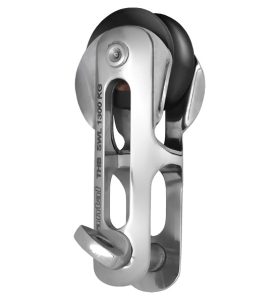

LSSISTER: 250H020, 250H040. 250H050, 250LS046, 250LS054
