Selden ARB45 automaatti Räikkä ploki, single
SKU: 404-401-01R

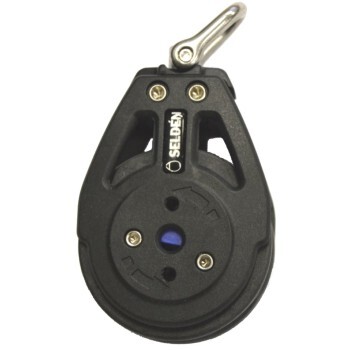

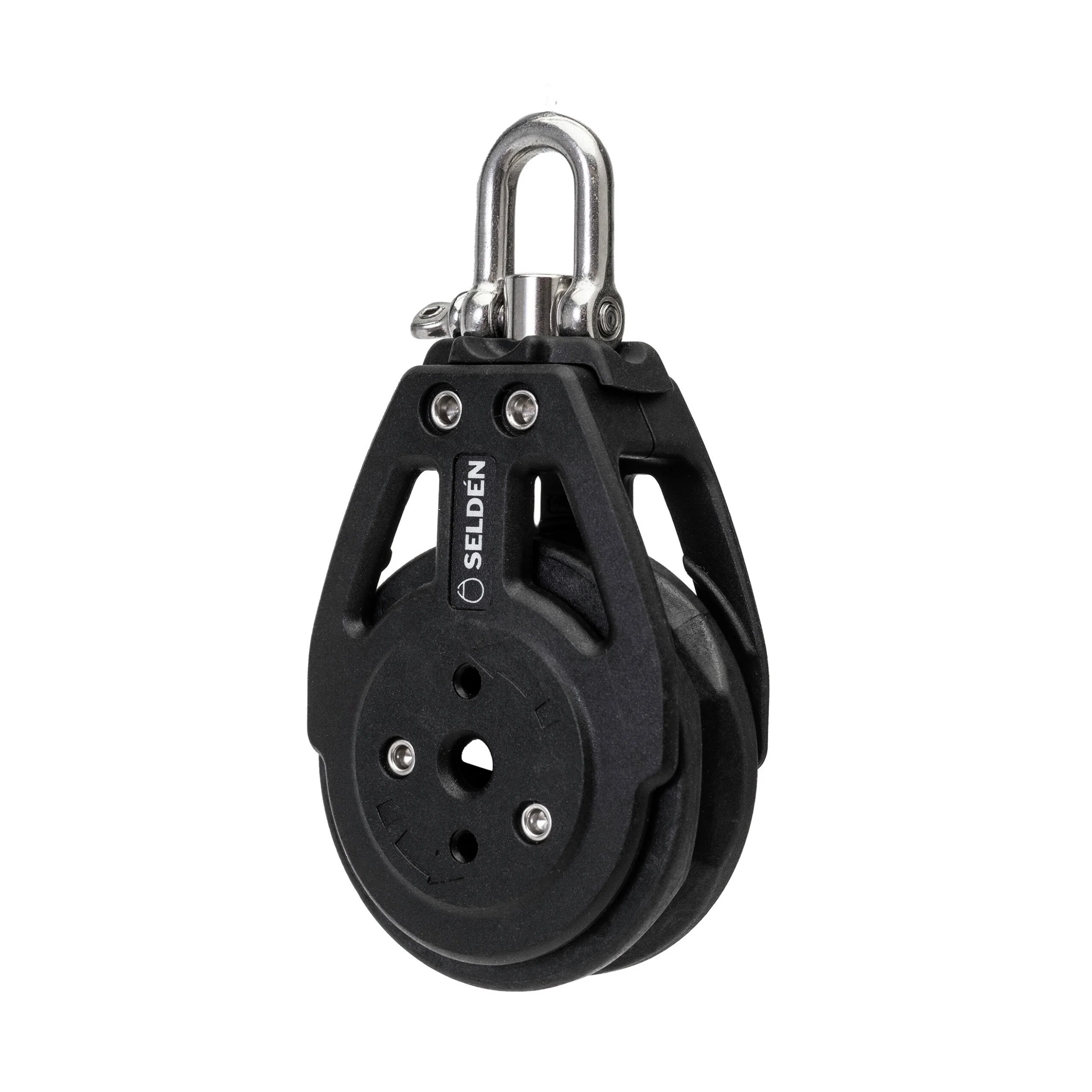

45 mm Automatic Ratchet Block – Single, Swivel
The ARB45 Single Swivel Block is a 45 mm ball bearing block with a swiveling shaft. A swivel lock, a plastic washer which is placed between block body and shackle, is included for fixed 0° or 90° shackle position.

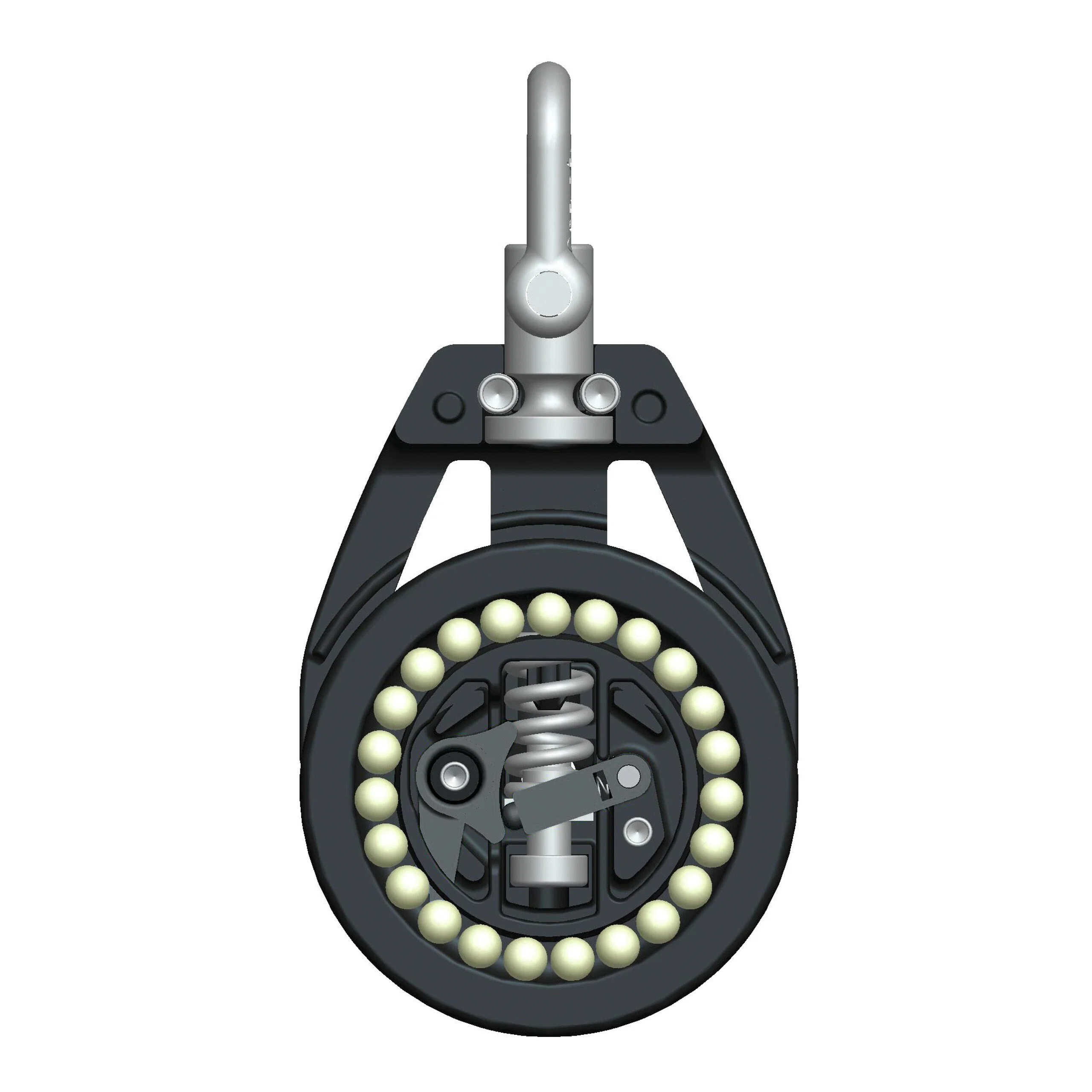

The block is designed with lightweight ø5 mm Delrin ball bearings and features a composite sheave. The sheave automatically changes from free-turning to ratchet when the load increases. The sailor decides when the automatic ratchet kicks in. The switch-over point is set using an allen key to adjust a screw inside the sheave. Fast, simple, precise.
APPLICATIONS
Dinghy main sheets.
Dinghy spinnaker sheets
TECHNICAL FEATURES ARB 45
Ø5 mm Delrin ball bearings and Ø45 mm carbon fibre reinforced polyetherimide sheave.
The sheave automatically changes from free-turning to ratchet when the load increases. The sailor decides when the automatic ratchet kicks in.< The switch-over point is set using an allen key to adjust a screw inside the sheave. Fast, simple, precise.
Specifications
Weight: 64.00 g
Safe working Load: 150 kg
Breaking Load: 300 kg
Max line size: 8 mm
Pin diam: 4 mm
Shackle diam: 4 mm
System: ARB45
Block type: single
| Paino | 0.064 kg (kilogramma) |
|---|---|
| Koko | 45mm |
| Tyyppi | Räikkä |
| Malli | Single |
| Tuotemerkki | Selden |
