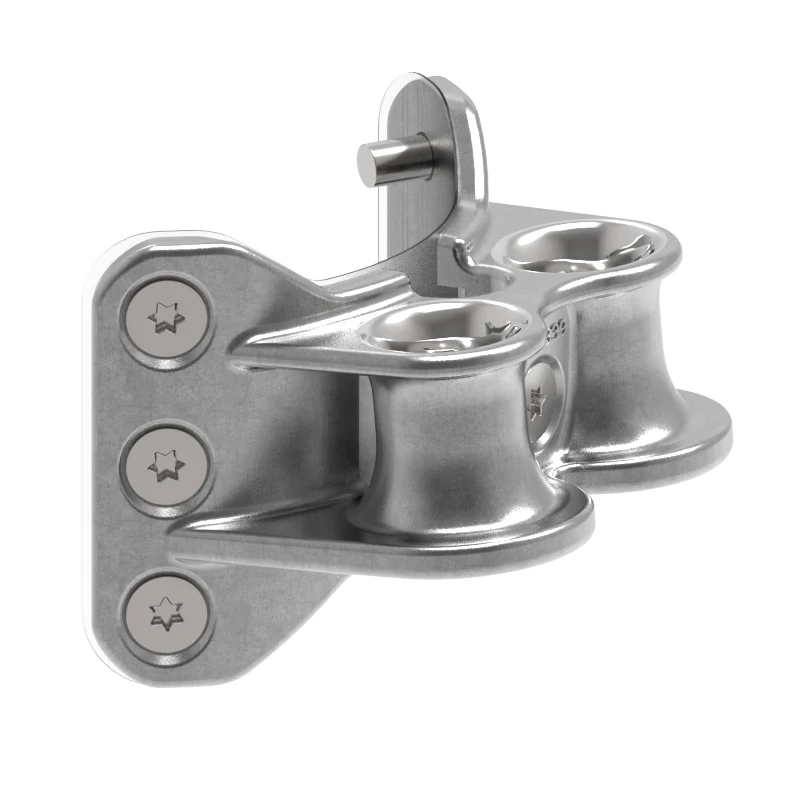

Selden kahden nostimen ohjuri 14mm nostinköysille
Tuotenumero 508-735-01
Keulapurjeen ohjuri pitää fallit ohennuksessa ja oikeassa kulmassa rullalaitteelle.
On erittäin tärkeää että rullalaiteen leikariin nostin tulee 10° kulmassa, etten nostin kietty etustaagin ympärille.
Sopii mastoille Selden C280, C321, F291, F324,
Materiaali ruostumaton teräs
Max 14mm nostinköysille. Ei sovellu Code 0 nostimelle.
Sisältää tiiivisteen ja pop niitit 4 kpl
Halyard Lead, Double – For rope halyards (not wire) C280/F291,C321/F324
Double halyard lead fitting in electro polished stainless steel for routing of two rope halyards. The fitting is slightly angled to achieve a perfect alignment.
In order to prevent galvanic corrosion between stainless and aluminium, the fitting shall be lacquered on the inside to insulate it from the mast. Any other kind of insulation, such as a thin plastic layer, will do just as well. Use only for rope halyards (not wire).
M8 screws included.
Designed for Seldén sections C280, C321, F291, F324, but the sides can be shaped in a vise to fit other similar sized sections .
SWL: 1450 kg
Max Halyard Ø: 14 mm
Max RM MH: 157 kNm
Max RM Fr: 140 kNm
Type: Double
| Paino | 0.321 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
