Selden levanki järjestelmä 22 4:1 säädöllä
Main sheet track, system 22 standard, 4:1 purchase
1500 mm 22 Srj kisko, vaunu, päädyhelat ja köydet
tuotenumero 400-022-01R
Valmis Selden Isonpurjeen levanki järjestelmä 22, kuulalaakeri vaunulla, 4:1 säädöllä. Lukot kiskon päädyssä
Sisätää levangin säätököyden Ø7mm 9,2m
Sopii veneisiin 20-33ft isonlenvangiksi
Huom. Skuutti plokit eikä kiinnitys pultit kuulu toimitukseen

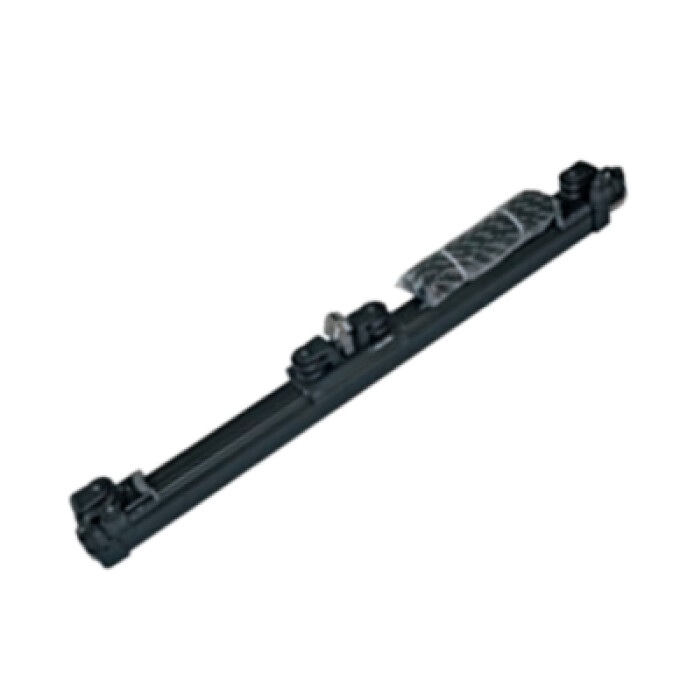

System 22 – Main Sheet System, 1500 mm Standard Track, 4:1 Purchase

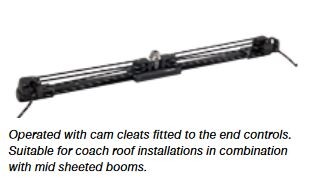

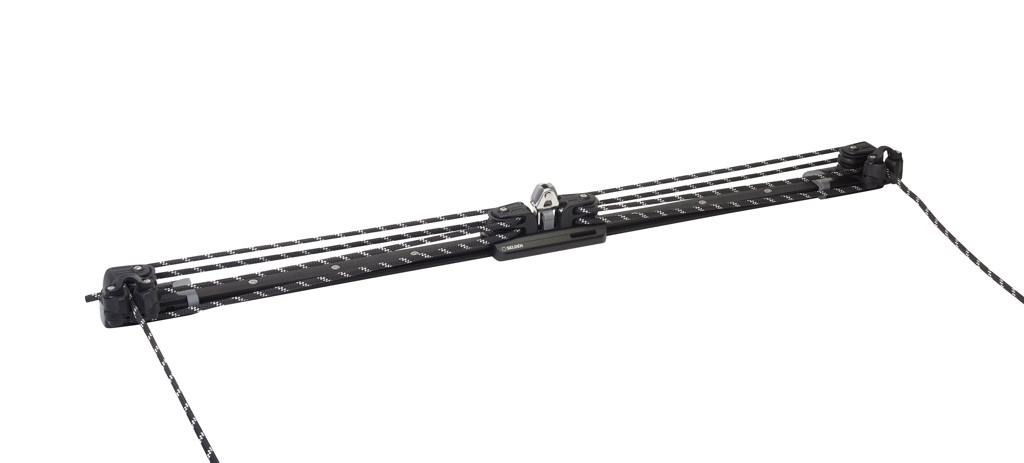

The System 22 Main Sheet Track Assembly is designed for medium-sized sailboats, with a 4:1 purchase and cam cleat controls integrated in the end controls. The kit includes:
• Main sheet car 442-149-01. The car is black anodised, extruded aluminium and runs on Torlon® ball bearings. It features plain bearing polymer sheaves for control lines and an AISI 316 mirror finished stainless toggle for Seldén PBB 50, BBB60, R60 and A60 blocks. The toggle and sheet block are supported by a rubber stand-up collar to improve function and to dampen vibrations.

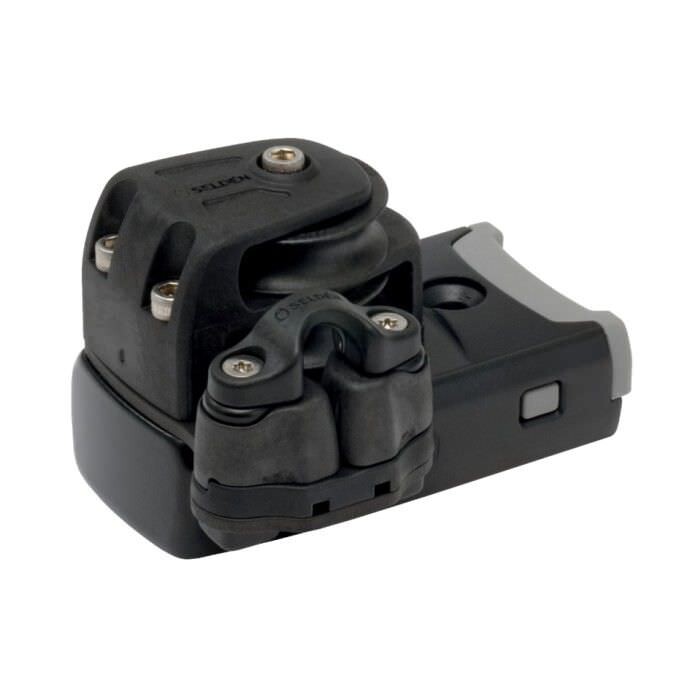

• End controls 442-112-02 / 442-112-03 with Size 27 mm cam cleats. Plain bearing sheaves and an integrated becket for the control line. Rubber shock absorbers prevent damages on car and end controls.
• 22 mm hard anodized standard track for M5 screws. Hole distance is c-c 100 mm. Length 1500 mm.
• 9 m control line, 24-plait Polyester.
Specifications
•Weight: 1931.00 g
•Length: 1500 mm
•Max MSL: 20.00 kNm
•Track: 442-001-02
•Car: 442-149-01
•End control portside: 442-112-02
•End control starside: 442-112-03
•Control line 7mm 9,2m: 400-500-09
| Paino | 2.146 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
