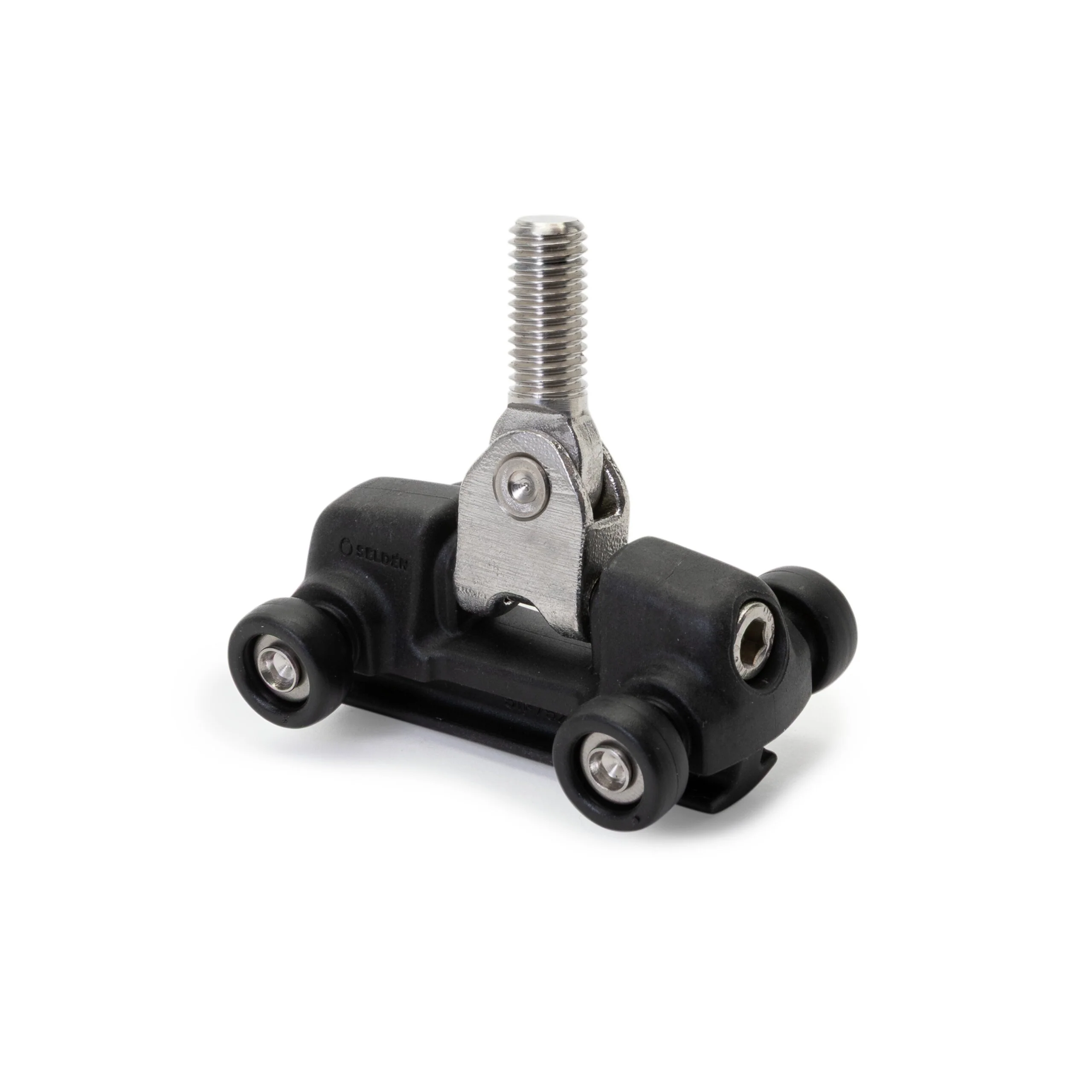

Selden OWS-läpilattaratsastaja 16mm Toggle M10 -752
SKU: 511-752-03
OWS (Outer Wheel slider) is an excellent upgrade from traditional sail slides to reduce friction when hoisting and dousing the main sail.
The depth and the shape of the slug is designed to correspond to sail slide HA 90 from Holt Allen and A 008 from Bainbridge. The four wheels roll on the aft side of the mast section while the slug slides inside the luff groove.
511-752-01 will fit mast sections of the following brands/models:
Briand/Pettersson 180×130 mm MkII (Maxi 95 from hull #250)
Briand/Pettersson 125×100 mm (Maxi 77)
The M10 stud fits any batten receptacle with M10 thread.
FitsLuffGroove: 10.00 mm
BreakingLoad: 7.00 kN

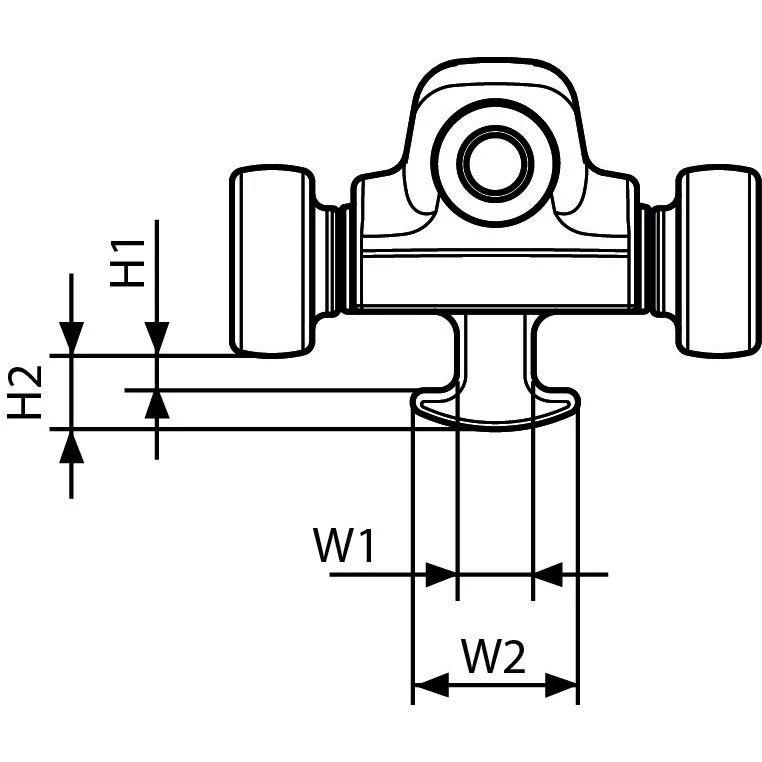

H1: 2.50 mm
H2: 6.20 mm
W1: 6.70 mm
W2: 16.50 mm
| Paino | 0.099 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
