Selden Spinaakkeripuomin päätyhela ID Ø33 mm Selden 38 putkeen
534-900-03
Valmistettu vahvasta komposiitista. HST tappi ja jousi. Kiinnityskohdat kukon jalkaa varten. Ei trigger mahdollisuutta
Sopii putkeen jonka sisähalkaisja on 33mm ( 048-048-54 )
Sisältää Monel niitit 3 x 167-018 (ø4.8×12.7)

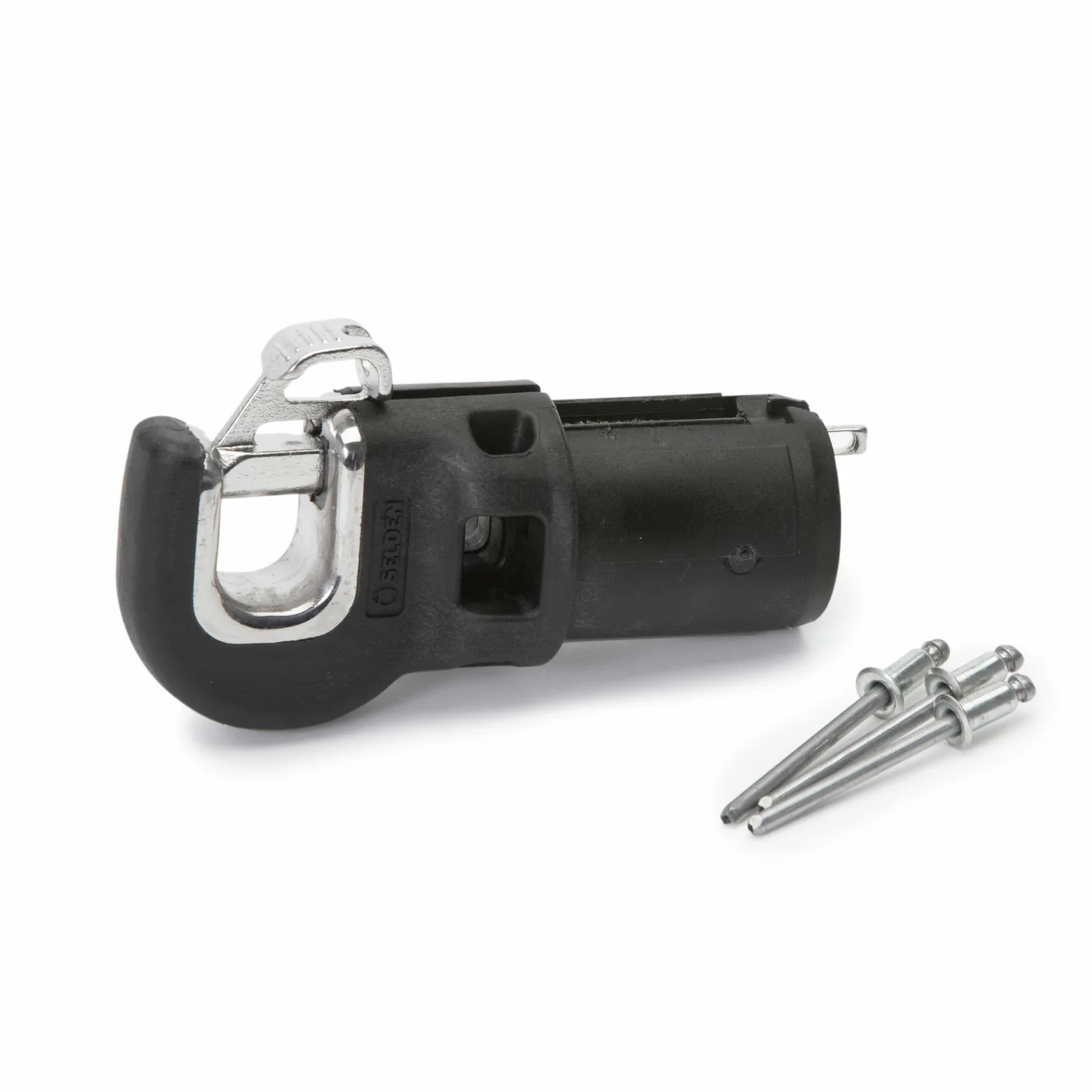

Spinnaker Pole Fitting, Size Extra Small
The end fitting is made of glass fibre reinforced polyamide composite. This material makes for a combination of low weight and strength and it also prevents damage to boat or mast when the pole is on the fore deck. The claw has a well rounded stainless
chafe guard, preventing damage to sheet and guy.
The stainless, spring loaded plunger is operated at the end fitting or with the release line. Attachment holes for spinnaker pole lift and downhaul or bridles.
3 Monel pop-rivets (ø4,8×9,9 mm) are included in the kit. The pop-rivets are only to be used for installation in an aluminium section – not in carbon fiber.
The inner part of this fitting has a diameter of ø33 mm and is used for Seldén ø38 mm poles. Also used for tapered ø50 and ø63 mm poles.
29048-534-779, 29048-534-865-03, 29048-534-854-01,
| Paino | 0.14 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
