Spinaakkeri puominpääty hela 48mm

Selden Spinaakkeripuomin päätyhela ø48mm putkeen
SKU 534-865-01

Valmistettu vahvasta komposiitista. HST tappi ja jousi. Kiinnityskohdat kukon jalkaa varten. Ei trigger mahdollisuutta
Sopii putkeen jonka sisähalkaisja on ø44mm ( 048-048-54 )
Sisältää Monel niitit 3 x 167-018 ( ø 4.8×12.7)
Adapteri holkilla 534-779 60/60 putkeen

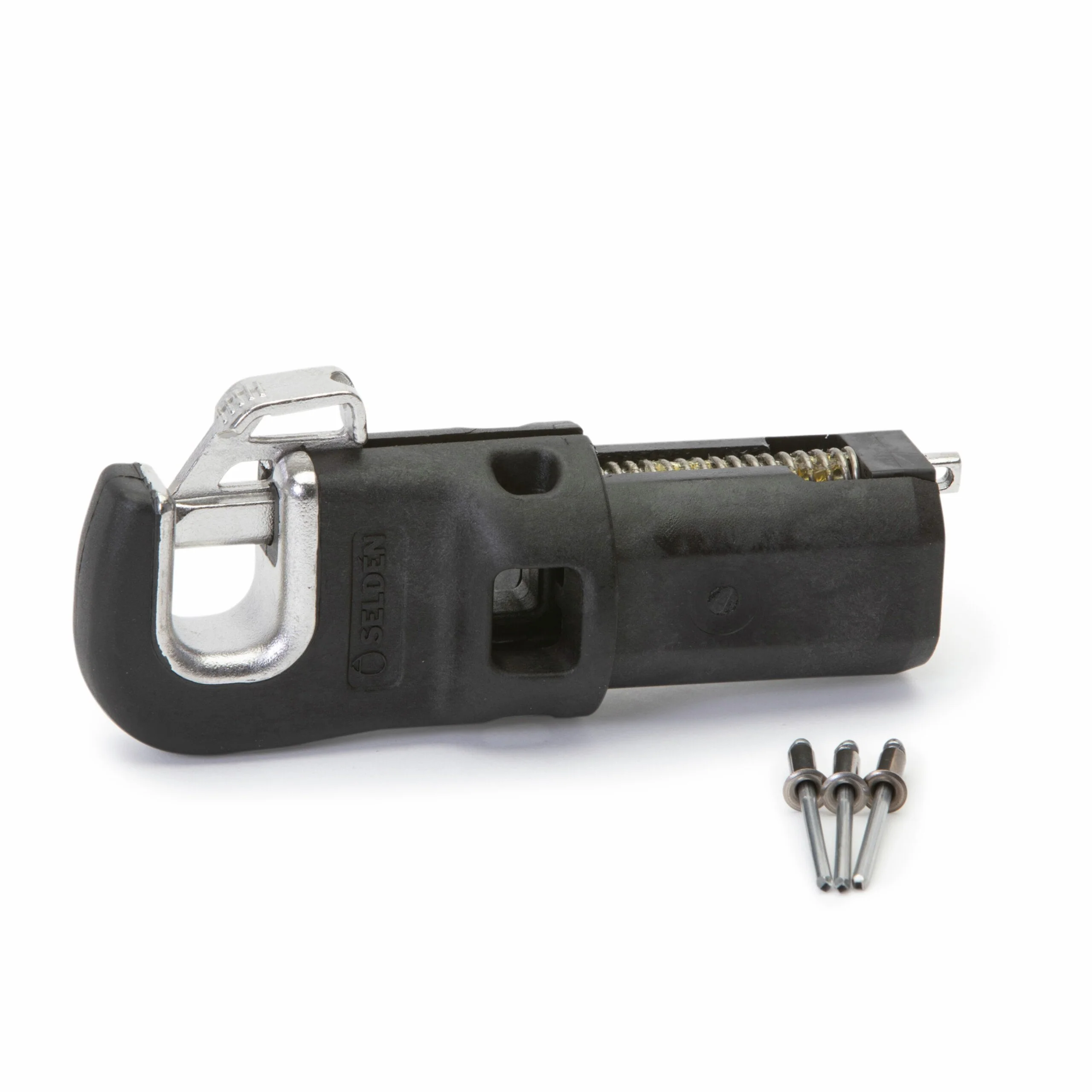

Spinnaker Pole Fitting, Size Small, for pole section ø 48 mm

The end fitting is made of glass fibre reinforced polyamide composite. This material makes for a combination of low weight and strength and it also prevents damage to boat or mast when the pole is on the fore deck. The claw has a well rounded stainless chafe guard, preventing damage to sheet and guy.

The stainless, spring loaded plunger is operated at the end fitting or with a release line. Attachment holes for spinnaker pole lift and downhaul or bridles.

The inner part of this fitting has a diameter of ø39 mm and is used for Selden ø48 and ø60 mm alu poles and ø47, ø59 and ø61 mm carbon poles.

3 Monel pop-rivets (ø4,8×12,7 mm) and a 0,5 mm thick spacer shim are included in the kit. The pop-rivets are only to be used for installation in an aluminium section – not in carbon fiber.

Connect only to Selden’s ø30 mm Spinnaker pole eyes 534-531-01 or 534-528-01.

29048-534-779, 29048-534-865-03, 29048-534-854-01,
