Selden Spinaakkeripuomin päätyhela Ø60mm putkeen ilman adapteria
SKU: 534-865-03
Valmistettu vahvasta komposiitista. HST tappi ja jousi. Kiinnityskohdat kukonjalkaa varten. Ei trigger mahdollisuutta
Sopii putkeen Selden 48 mm putkeen jonka sisähalkaisja on 39mm. Adapterilla sopii selden 60mm putkeen.
Nailon Adapteri 60mm putkeen hankittava erikseen
● 60mm selden putkeen adapteri 534-779
Sisältää Monel-niitit 3 x 167-006 ( 4.8 x16.5mm)
Spinnaker Pole Fitting, Size Small, for pole section ø60 mm, excluding adaptor

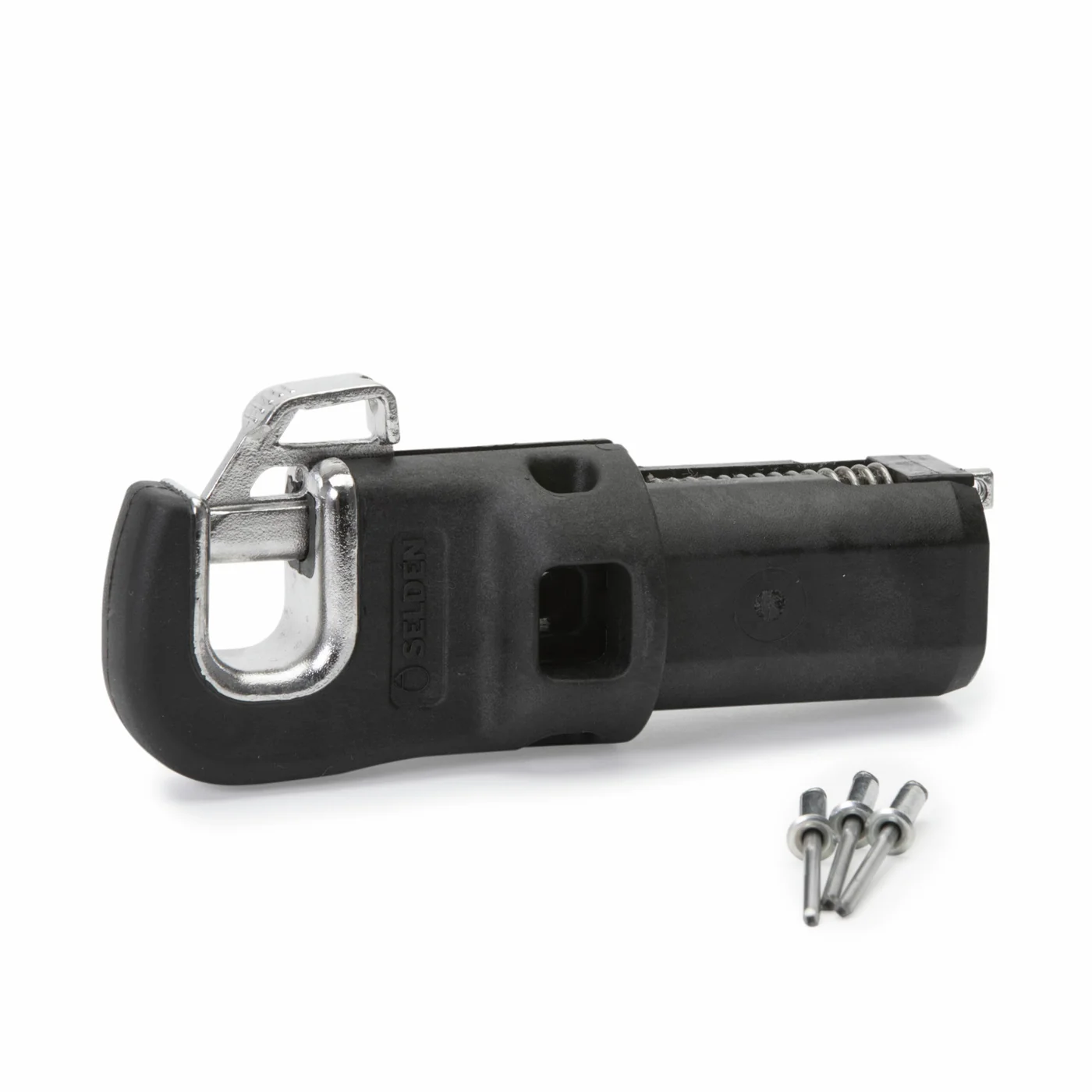

The end fitting is made of glass fibre reinforced polyamide composite. This material makes for a combination of low weight and strength and it also prevents damage to boat or mast when the pole is on the fore deck. The claw has a well rounded stainless chafe guard, preventing damage to sheet and guy.
The stainless, spring loaded plunger is operated at the end fitting or with a release line. Attachment holes for spinnaker pole lift and downhaul or bridles.
The inner part of this fitting has a diameter of ø39 mm and is used for Selden ø48 and ø60 mm alu poles and ø47, ø59 and ø61 mm carbon poles.
3 Monel pop-rivets (ø4,8×16,5 mm) and a 0,5 mm thick spacer shim are included in the kit. The pop-rivets are only to be used for installation in an aluminium section – not in carbon fiber.
Adapter for installation in a ø60 mm pole section has to be ordered separately.
For use in ø60 mm aluminium Seldén section – use adaptor 534-779
Connect only to Selden’s ø30 mm Spinnaker pole eyes 534-531-01 or 534-528-01.
