Spinaakkeripuomin kuulalaakeri 10˚ bayonet vaunu 1:1 RCB 30mm kiskoon
10˚ baynet car
Valmistajan tuote no: 511-585-04
RCB 10° vaunu bajoniitti kiinnityksellä 1:1 säätö
Sopii Selden RCB 30mm kiskoon

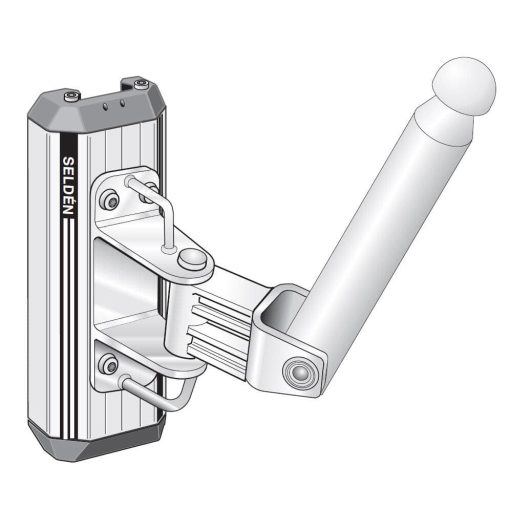

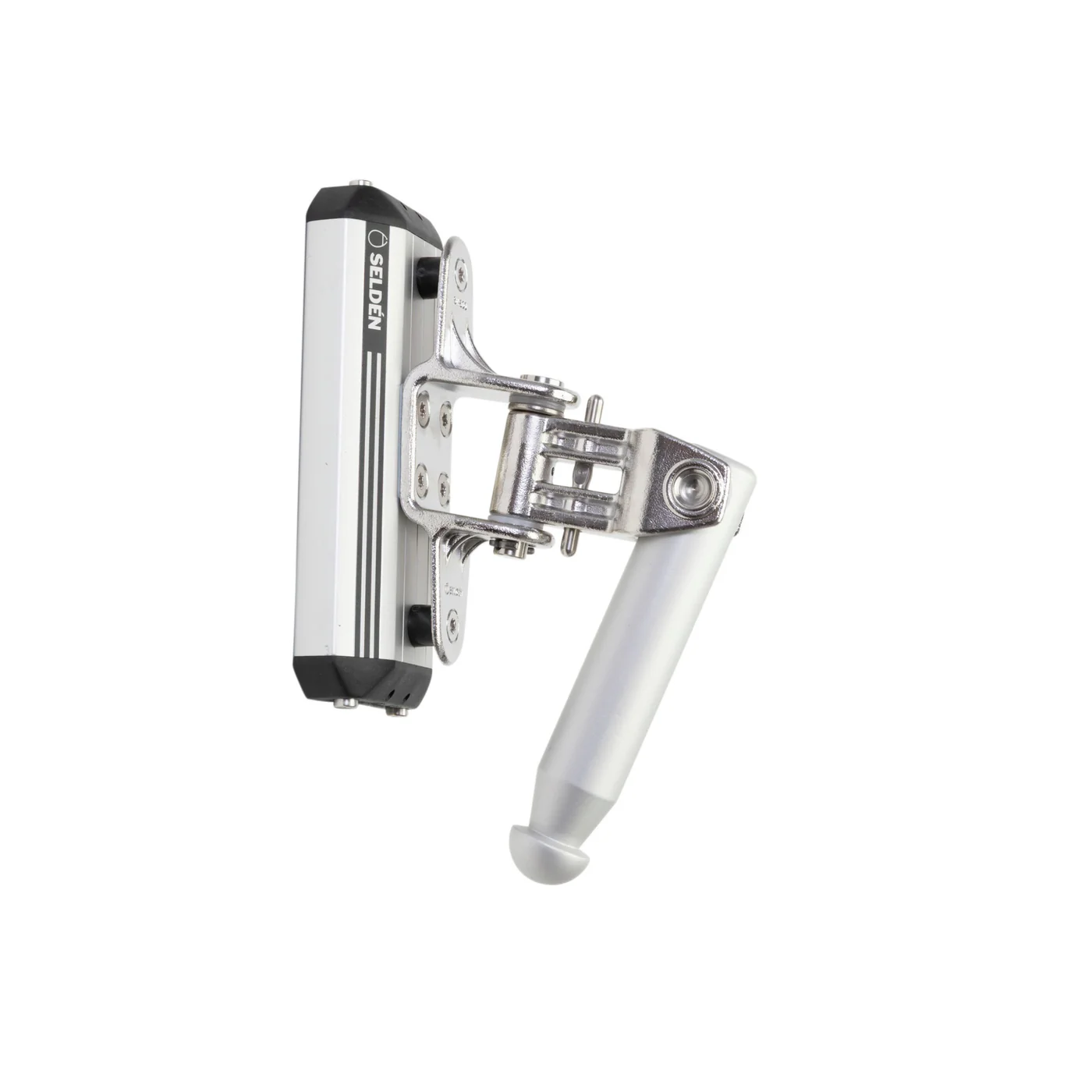

Spinnaker Pole Car, RCB30, 10˚ peak for bayonet inboard end, 1:1 purchase
Spinnaker pole car running on our 30 mm RCB track. It has attachment for pole heel lift up and down and it is made of extruded clear anodized aluminium with composite ends. The bracket is stainless steel and angled 10° down to perform well with VPS installation (Vertical Pole Stowage). Peak is aluminium and the ball bearings are made of Torlon. The car is delivered on a short piece of track and as the ball bearings are not captive it is important to align the transport-track with the track on the mast, move the car over and fix the endstop.
Combine with a Selden Bayonet inner end.
RCB stands for Round Circulating Ball bearings.
Track Type: RCB 30
Description: 10° bracket,& bayonet
MaxRM: 120 kN
Purchase: 1
Pole end 1: 534-778
| Paino | 1.888 kg (kilogramma) |
|---|---|
| Tyyppi | RCB30 |
| Tuotemerkki | Selden |
