Standard Furlex fork/fork toggle 8mm staagille
Selden staagipääte/haarukka 8mm staagille
517-048-02
Furlex 200S &204S 8mm alahela tai mastossa olevaan silmään
Specifications:
Forestay diam: 8 mm
Length H: 50.00 mm
D-1: 14.00 mm

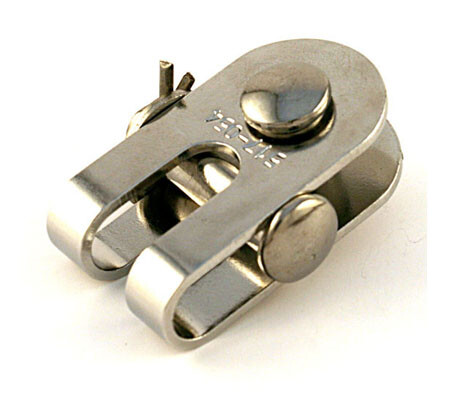

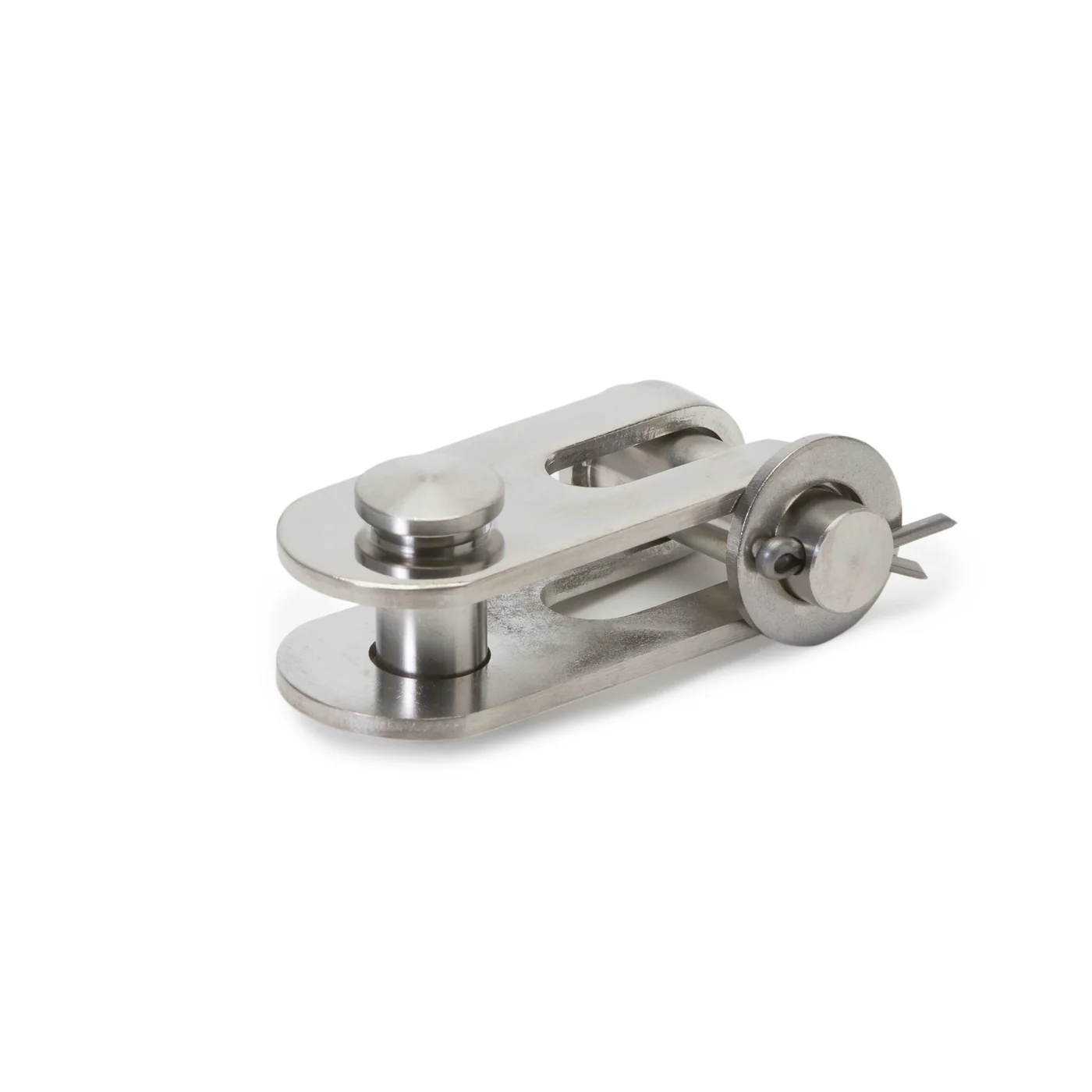

Double Jaw Toggle for ø8 mm wire application
The double jaw toggle is manufactured in AISI316 stainless steel and articulates for perfect alignment in the direction of load. This prevents fatigue on wire and swage terminal and makes for a long lasting standing rig.
Used as standard toggle in manual Furlex systems for ø8 mm headstays.

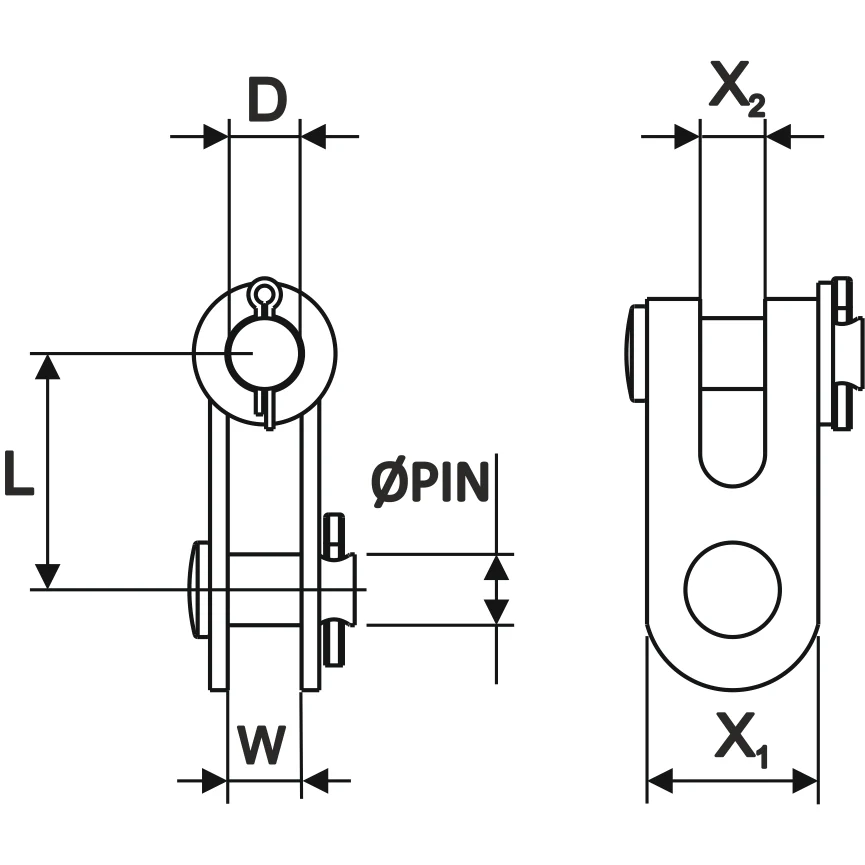

SubType: Fork/Fork
Wire diam.: 8 mm
L: 50.00 mm
PIN: 14.00 mm
W: 14.50 mm
D: 14.00 mm
X1: 36.00 mm
X2: 14.00 mm
Katso tästä Furlex 200S huolto ja varaosakirja !
Katso tästä Furlex 204S ja 304S huolto ja varaosakirja !
29010-517-046-02, 29010-517-048-02, 028-324-01, 028-324-13,
| Paino | 0.365 kg (kilogramma) |
|---|
