Selden RCB 22 TRACK,TRY SAIL L 2300mm +6 vaunua niittikiinnitys
SKU: 515-525-35
Try sail kisko RCB vaunulle pituus 2300mm niittikiinnitys
Yksi 2300mm kisko sisältää aina 6 RCB trysail vaunua.
Määritä Trysaill maskokiskon mitta ja tilaa tätä 2300 mm:n osuutta tarvittava määrä. Yhdistä Trysails kiskon syöttö osalliseen kiskoon 515-525-31
Syöttö-osa kisko sis vaunut # 515-525-31 ja tarvittaessa lisävaunuja # 511-713.
Trysail system
In stormy weather, when your 2nd or 3rd reef of the mainsail just isn’t enough, the way to go is with a trysail.
A trysail is a loose-footed, fairly flat sail made from heavy sailcloth, but with a luff length and foot length considerably shorter than your regular mainsail.
It is hoisted on a separate track, independent of the normal luff groove.
The trysail track is fitted beside the luff groove on the aft side of the mast and runs all the way to deck level. That way you can always have your trysail fitted to the track, ready to be used.
When using a trysail, the end of the main boom is secured to the deck.
Sheeting point should be according to the illustration.
If trysail luff length is not available from the yacht designer, our general recommendation is that the trysail should reach 55-65% of the foretriangle height. The track should end approximately 0.5 m below checkstays/ runner attachments, if any.

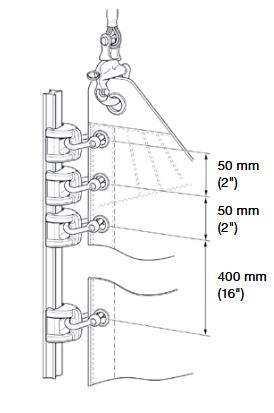

We recommend fitting three sliders at the head and tack of the sail (c/c 50 mm), remaining sliders to be fitted c/c 400 mm.
Seldén Silicone lubricant (Art. No. 312-506) can be used on the track to minimise friction.

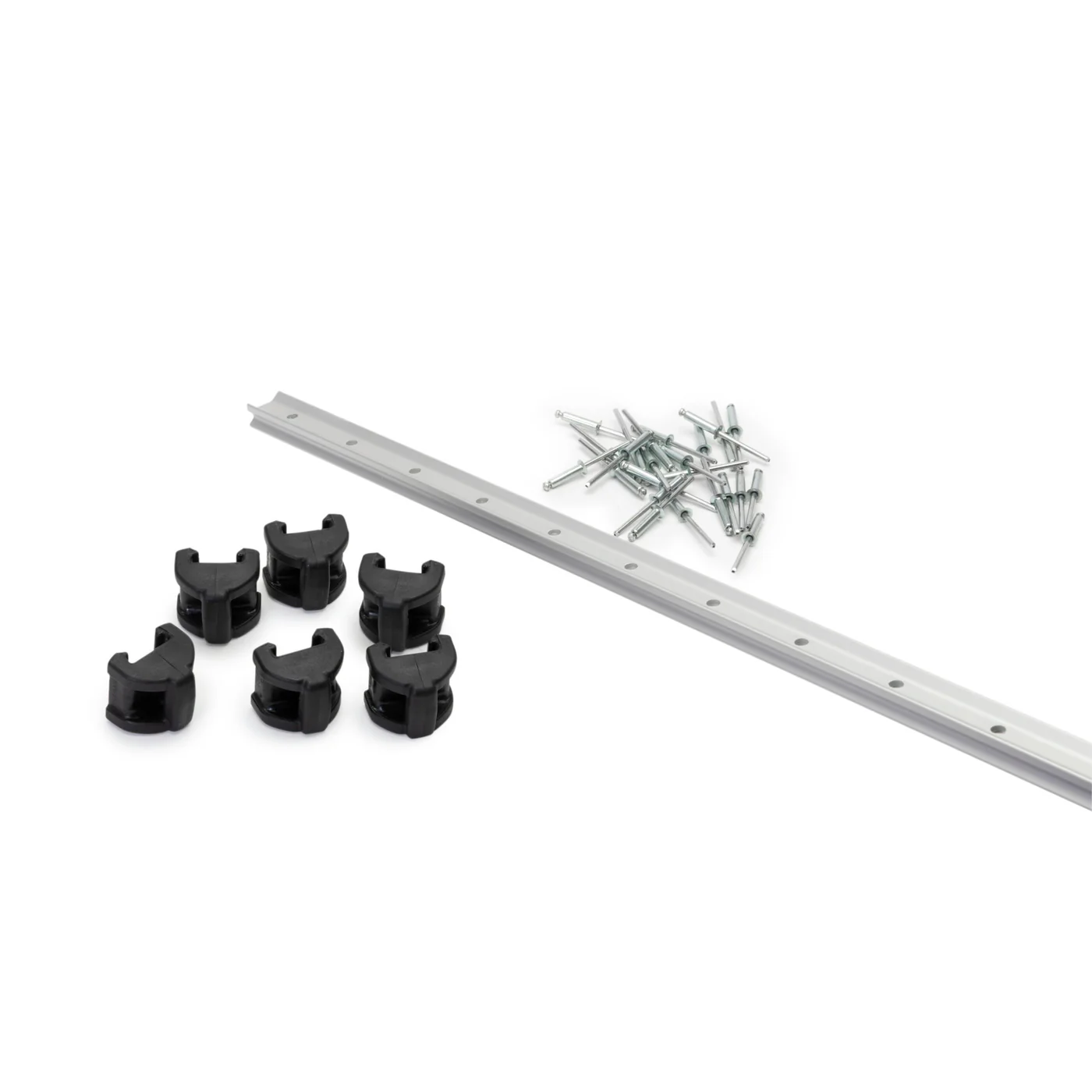

2300 mm Trysail track with 6 sliders, fasteners included
Includes 24 pop rivets, ø4,8 mm.
Define how long your try sail track needs to be and order as many of this 2300 mm section as required. Combine with track gate kit 515-525-31.
| Paino | 1.146 kg (kilogramma) |
|---|
