TRIPLE HEADBOARD CAR 60 RACE TRACK 24- HS24 headboard kolmoisvaunu 60mm RACE
HS24.60T

Käytetään Antal HS24.64/HS24.66/ HS24.69 toppilevyn kanssa

HS Headboard slider.

All components’ dimension and the distances of the sail from the mast are found in the sheet Full Batten Systems – Measures.

The Antal HS Guide System is designed for boats with full batten mainsails that experience high loads and compression-loading on the mainsail luff. The system’s aluminium sliders contain HS composite fibre inserts that run on aluminium track mounted on the mast. HS composite fibre is a new material that is durable over long periods of use and offers extremely low friction coefficients. The material is made from special resins strengthened with fibre and is self lubricating.

The HS Guide System provides the following advantages: The low friction properties of the HS composite fibre allows the cars to be shorter than standard ball-bearing car systems, thereby reducing the stacking height at the mast when the sail is down; The lower cars can easily be removed from the track when the sail is reefed, thereby keeping the tack low to the boom; Minimum friction under load; Less maintenance than ball bearing car systems; Cars can easily be removed and re-installed on the track whenever the mainsail is changed.

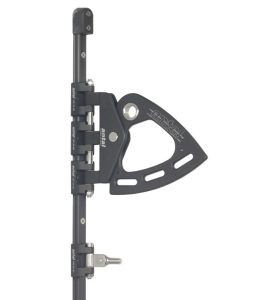

Each batten end fitting is attached to a slider with a triaxial joint to ensure that the batten can freely orient itself under all points of sail. At least one simple slider should be attached to the sail with nylon webbing between two battens. A headboard is attached to the sail with webbing and is secured to the slider (double or triple) with a clevis pin which allows the headboard to pivot and to be removed.

Choice of the track.

24×16 track is the versatile track by Antal. It accepts both FB sliders on ball bearing and HS sliders on fibre. Or even a combination of both. This track is mounted in systems for boats up to 70’. Download the pdf with all information about 24×16 Antal track, and in particular: track profile, available lengths, available hole distances, available installation tools.

Position of the mast.
Mainly depending on the position of the mast when the track will be installed, one chooses the short or the longer track length. Antal realizes bars lengths of 2 and 3 meters. A 3 meter long track is recommended if the mast is horizontal (non mounted masts), while the 2 meter long track is easier to install when masts are in the vertical position (mast already on the boat). Mounting type. Mounting type depends on the mast’s characteristics. Antal tracks are realized for different types of mounting. Choose a track for slugs in case of masts with groove. Masts without a groove or wooden masts will require installation with screws or glue, being glue a good solution for tracks on a carbon mast. In the sheet information about 24×16 Antal track all technical info about track mounting are available.

Hole distance. Available single and double hole distance, for the different demands of ease of installation and holding strength of the track.

Technical characteristics:
Length (L) :201 mm
Height (H) :37 mm
Track dimensions : 24×16
Weight :730 gr
SWL :3900 kg

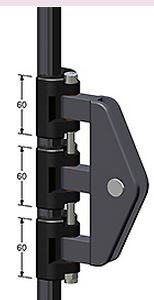

Sliders (No. x L) : 3 x 60 mm
Offset (T) :88 mm
Pin (D) : 14 mm

Car Length: 60 mm sliders
Slider: HS high strength fibre systems
Boat length: Boats up to 60
