Antal Tulip laajakulma jalkaploki Ø 60mm
Single tulip foot block, sheave Ø 60mm, SWL 2200 kg
Antal realizes a special line of deck blocks which mount Tulip sheaves. Tulip sheaves have a particular groove shape that allows a line lead angle range of 40°. Torsion loads are borne by large lateral ball bearings. Low friction is thus always guaranteed even when the line is deflected. Tulip deck blocks include Tulip foot blocks, Tulip organizers, Tulip vertical blocks and Tulip turning sheaves. Also spare Tulip sheaves are provided for custom applications. Mounting screws, nuts and washers included.

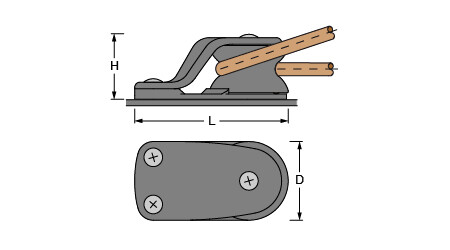

Length (L) :116 mm
Width (W) :60 mm
Height (H) :51 mm
Ø sheave (D)
:60 mm
Side bearing :Torlon balls
Radial bearing :composite fibre
Weight :430 gr
Ø max line :14 mm
SWL :1600 kg
Material :Aluminum
Sheave material :Aluminum
Fixing screws: 3 x round head
Ø screws 2 x 8 mm + 1 x 10 mm
