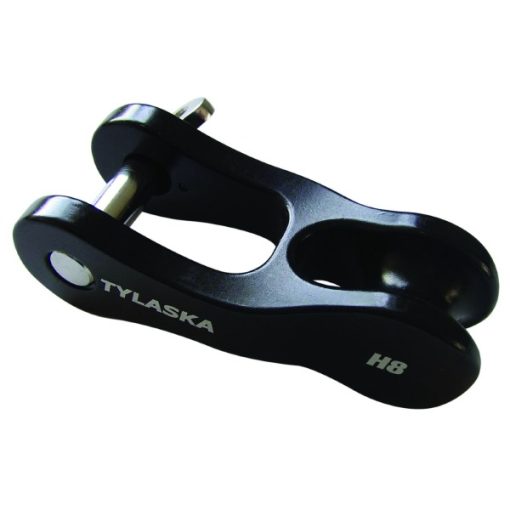

Tylaska H8 Aluminum Halyard Shackle
tuotenumero:TY1408
Tylaska H sarjan nostin sakkelit on saatavissa kolmessa koossa ja kolmen vesiona.
2:1 perus malli, ei kuluvia osia vaan muotoiltu sanka toimii kehränä. voidaan käyttää myös 1:1 sakkelina.
2:1 malli kehrällä on evoluutio alkuperäisestä.
2:1 avattava falli sakkeli toimi heittarina ja myös muissa kohteissa täydellisenä sakkelina.
• Erittäin kevyt
• Erittäin kestävä
• pieni kitka ei sulata köysiä

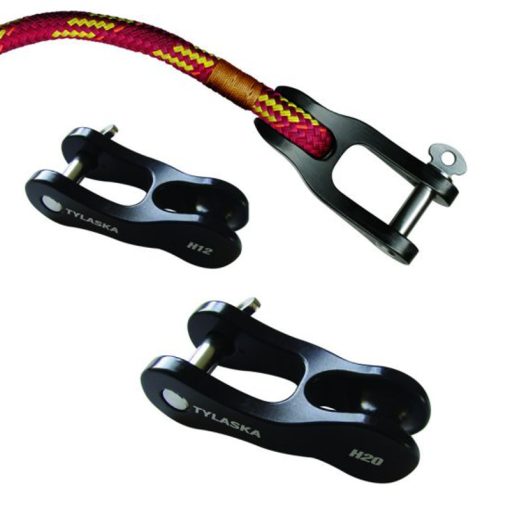

Halyard Shackles
True 2:1 Sheaved Shackles
Using a high strength composite sleeve bearing, Tylaska has created true 2:1 halyard shackles capable of handling the full rated load of the shackle. The size was made to fit standard sail headboards without adding any unnecessary weight. Strength was optimized by computer and then verified by numerous destructive tests.
Split 2:1 Halyard Shackles
The Tylaska Split 2:1 halyard shackle offers snatch block convenience to the popular lightweight offering from Tylaska. These are ideal for quick installation and removal from existing rigging.
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard
Tuote: TY1408 H8
A mm 80.2
B mm) 33.5
C mm) 7.1
D mm 38.2
E mm 21.2
F mm 19.3
G mm 14.3
H mm25.4
I mm 27.1
J mm 8.1
Line Size 10-12mm
Working Load Limit kg 1,810
Breaking Strength kg 3,630
Weight g 87
