Wichard MXEvo 11605 10mm falli shakkeli

Wichard MXEvo 11604 8mm fallishakkeli kousilla

Sakkeli, joka ottaa vastaan suuret staattiset kuormat. Helppo käyttää, toimii loistavasti nostimissa ja tuplaa nostimen voimavälityksen.
Materiaalina taottu ja karkaistu ruostumaton teräs.

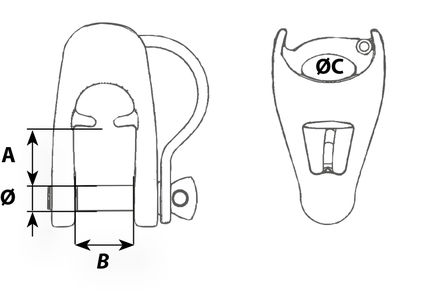

Pituus 62 mm
leveys 36 mm
halkaisija 8 mm
A = 18 mm
B = 18 mm
halkaisija C = 9 mm
Työkuorma 1760 kg
murtolujuus 4100 kg.
AISI 316L
Paino 0,109 kg.

Wichard käyttää ainoastaan huippuluokan ruostumatonta terästä tuotteissaan. Useimmat tuotteet on valmistettu AISI 316L antimagneettisesta seoksesta. Toinen ruostumaton teräslaatu, jota Wichard käyttää on AISI 630HR (High Resistance) magneettinen seos.
Wichard -tuotteet valmistetaan takomalla. Tällä menetelmällä eliminoidaan materiaalin sisäiset rakenteelliset virheet. Näin ehkäistää n mahdollisia murtumia, joita saattaa esiintyä valetuissa metallituotteissa.
Wichard merkitsee tuotteensa leimaamalla. Tämä on tae turvallisesta tuotteesta joka on läpäissyt Whichard -laadunvalvonna

The MX is a High Resistance halyard shackle fully forged in 17/4 PH stainless steel to take on the high loads. MX has been specifically designed for static load operations and can be used to replace the terminals on flying sail furlers (i.e halyard block) or as a 2:1 purchase for your mainsail.

Outstanding strength/weight ratio:

Fully forged in High Resistance stainless steel, the MX offers one of the best strength/weight ratios on the market. Compared to standard blocks and for the same line diameter, the MX offers much higher working and breaking loads as well as optimised dimensions and weight.

A unique design:
Thanks to its unique design, the MX can excellently distribute the stresses. Its particular shape enables the MX to perfectly position the line to avoid undue and excessive wear on the line.

Easy to install:
The MX requires no specific lashing knowledge. Its installation is as easy as installing a shackle, thanks to its Wichard self-locking pin.

Reliable and maintenance free:
The MX does not include any mechanical parts (i.e sheave) which can potentially break. Moreover, it does not require any particular maintenance.

Applications

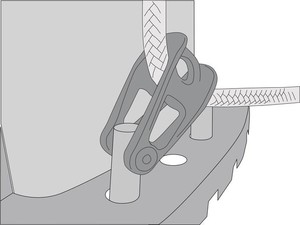

As terminal for flying sail furlers:
The MX can effectively replace the terminal of your flying sail furlers, especially the halyard block, by providing an outstanding strength/weight ratio. When luff tension is needed, it can be used:
to replace the halyard block on top swivel
to replace the lower terminal on spool (snap shackle etc.
As a halyard shackle for mainsail halyards (2:1 purchase):
The MX has been specifically designed to adapt itself to the heads of most mainsails. Thus it can be used in place of a 2:1 purchase on a mainsail halyard making it easier to tension the halyard and hoist the mainsail.

Material
HR stainless steel 17.4 PH
