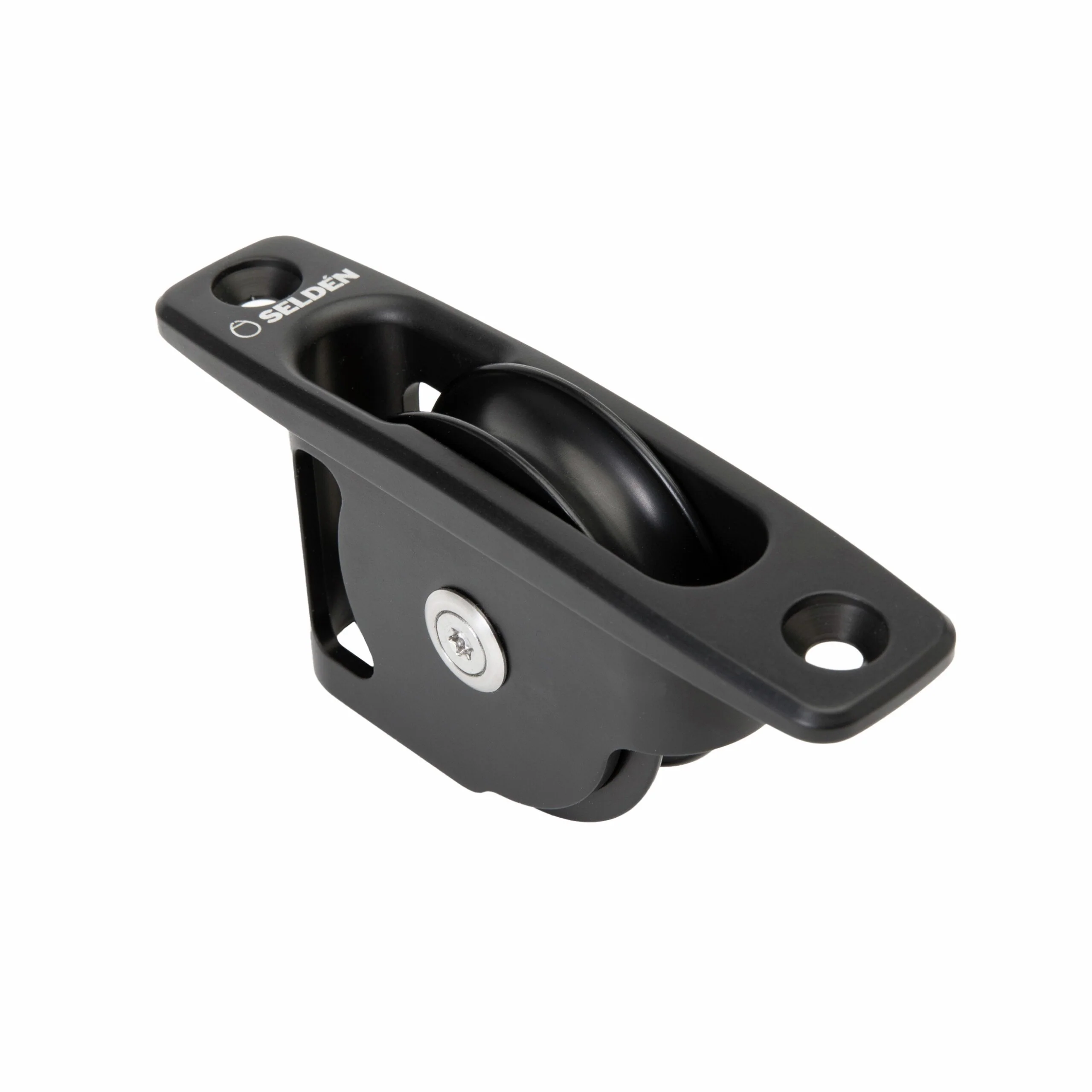

APB60 läpi kannen Exit ploki 60mm – alumiini liukulaakeri
Selden tuotenumero: 406-501-14R
Aluminium Through-Deck block with 60 mm sheave
Through-Deck Sheave Block
A versatile and durable block designed for routing lines through flat deck surfaces. Ideal for jib furling control line, control line for swim platforms and other deck-led systems where clean, low-profile line routing is essential. Plain bearing sheave with Delrin thrust bearings for low friction even if the line is not perfectly aligned with the sheave.
Sheave Diameter: Ø60 mm
Sheave Material: Aluminium
Holder: Machined and anodized aluminium
Radial Load: Plain bearing
Axial Load: Ø4 mm Delrin thrust bearings
Application: Suitable for moderate to high-load line routing through decks or similar flat surfaces
BlockType: td,single
SubType: td single
Breaking Load: 3000 kg
Safe working Load: 1500 kg
System: APB60
Max line size: 12 mm
Mounting: 2xM6
| Paino | 0.313 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
