APB60 nostin ploki kannen juureen 60mm – alumiini liukulaakeri
Selden tuotenumero: 406-501-13R

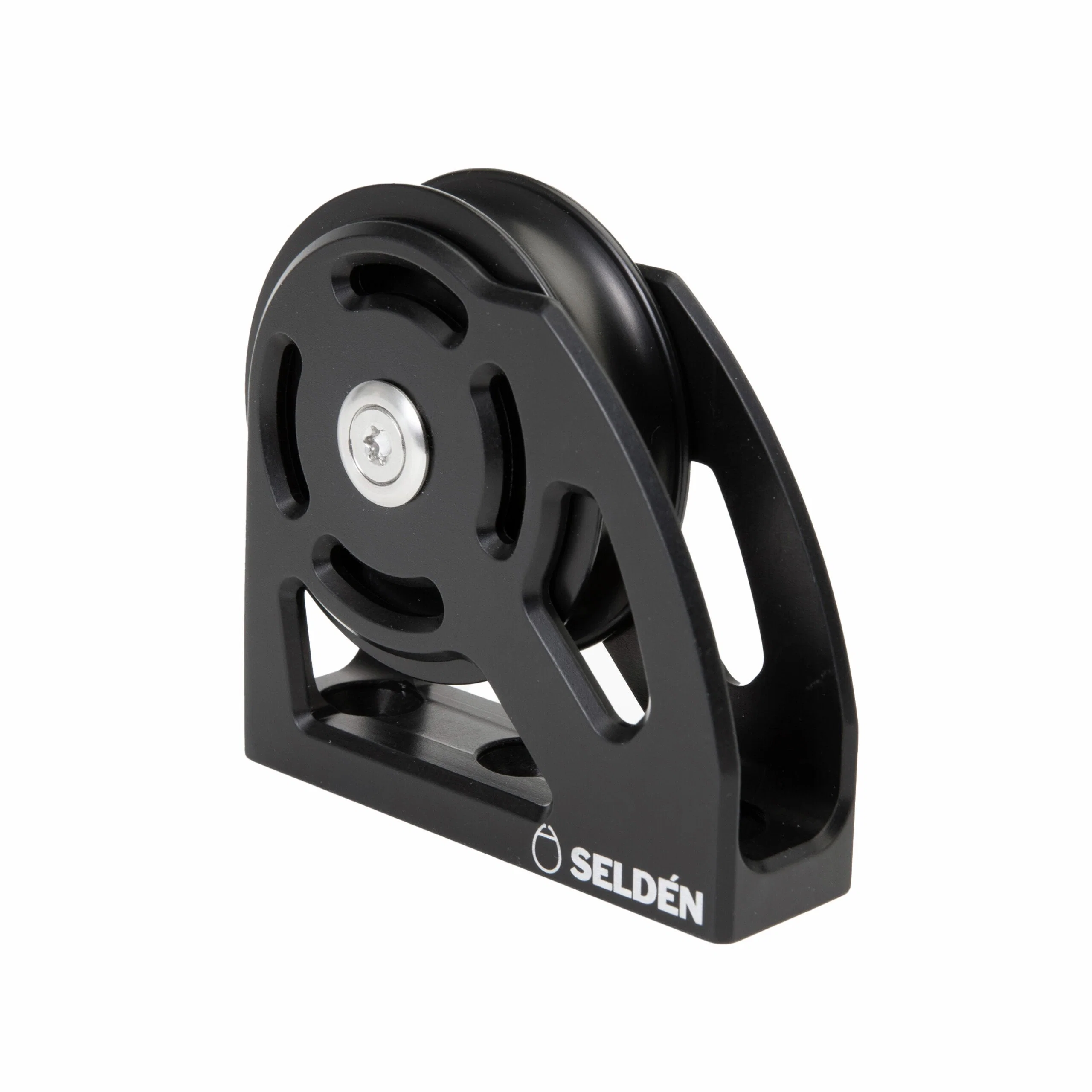

Aluminium Halyard block with 60 mm sheave
Halyard block
A block designed for routing lines 90° – typical for routing a halyard from the mast and aft. Plain bearing sheave with Delrin thrust bearings for low friction even if the line is not perfectly aligned with the sheave.
Sheave Diameter: Ø60 mm
Sheave Material: Aluminium
Holder: Machined and anodized aluminium
Radial Load: Plain bearing
Axial Load: Ø4 mm Delrin thrust bearings
To be mounted with three M6 bolts, c-c between holes; 28 mm
Overall length: 81 mm
Overall height: 77 mm
Overall width: 24 mm
BlockType: Halyard Block
SubType: mastbase
Breaking Load: 2400 kg
Safe working Load: 1200 kg
System: APB60
Max line size: 12 mm
Mounting: 3xM6
| Paino | 0.313 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
