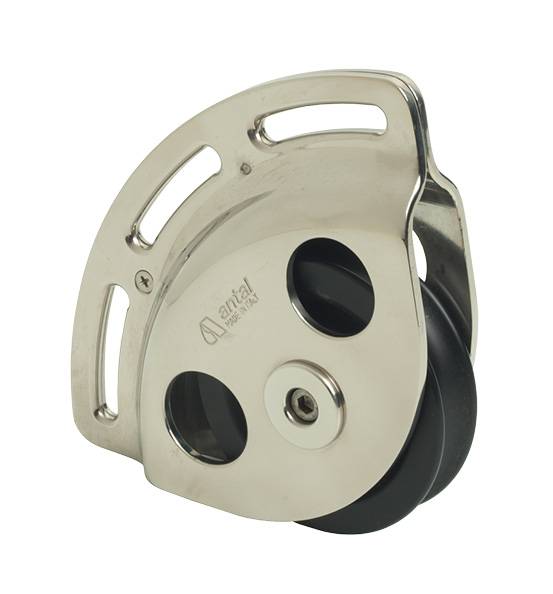

CLEW BLOCK 70 – SS sheave Ø70, SWL 1000 kg

Antal CLEW BLOCK 70 – SS
Reivi ploki purjeeseen, webbing kiinnitys

S.Steel classic series, clew block, sheave Ø70, SWL 1000 kg

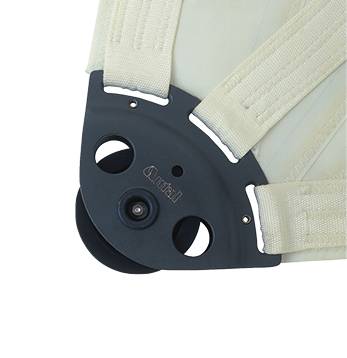

Solution designed to solve the connection of a sheave to the furling mainsail clew efficiently. The block is contained within the size of the sail, thus allowing a larger surface of the mainsail to be used. The choice of materials guarantees the least weight as well as a very good mechanical resistance to the environment. Particular care has been taken over the ease of connection which is obtained by normal “webbing”. This ensures moreover a very good distribution of the load on the sail.

Length (L) 112 mm
Track dimensions 36 mm
Ø sheave (D) 70 mm
Side bearing Delrin balls
Radial bearing Composite Fibre
Ø max line 14 mm
SWL 1000 kg
Material S.Steel
Sheave material Aluminum
Webbing (N. x width) 3 x 36 mm
