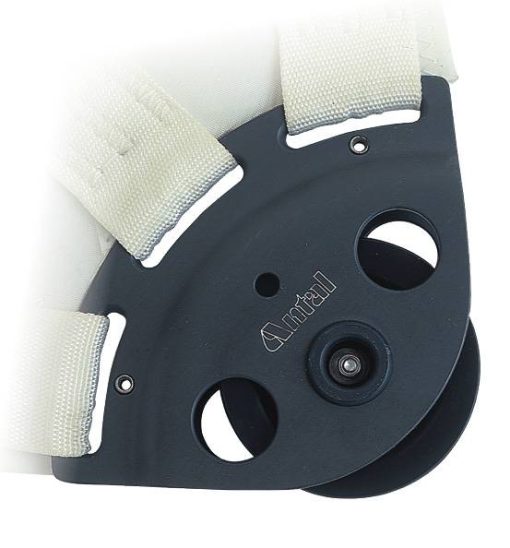

Antal Clew block, sheave Ø 70, SWL 1000 kg
SKU: 991.073/AL
Reivi ploki purjeeseen, webbing kiinnitys.
Käytettän rulla ison kanssa tai ison purjeen reivien kanssa.
Solution designed to solve the connection of a sheave to the furling mainsail clew efficiently. The block is contained within the size of the sail, thus allowing a larger surface of the mainsail to be used. The choice of materials guarantees the least weight as well as a very good mechanical resistance to the environment. Particular care has been taken over the ease of connection which is obtained by normal “webbing”. This ensures moreover a very good distribution of the load on the sail.
Length (L) 112 mm
Ø sheave (D) 70 mm
Side bearing Delrin balls
Radial bearing composite fibre
Weight 0,23 kg
Ø max line 14 mm
SWL 1000 kg
Material Aluminum
Sheave material Aluminum
Webbing (N. x width) 3 x 36 mm
| Paino | 0.23 kg (kilogramma) |
|---|
