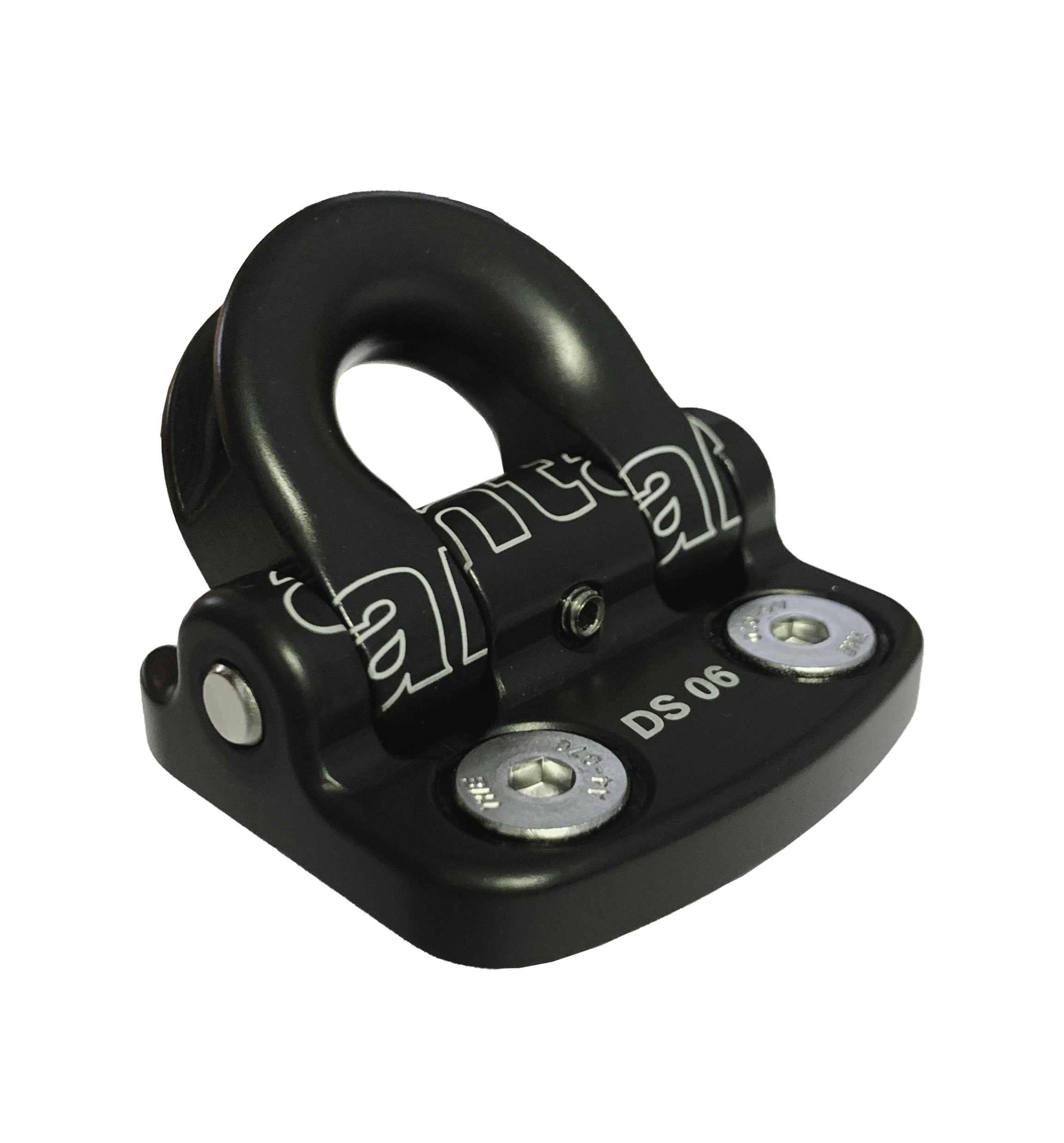

Deck shackle for soft lashing and Dyneema splicing, SWL 1500 kg
SKU: DS06
This new DS08 is a folding aluminum deck shackle suitable for soft lashing and splicing as a Dyneema loop. Compared to the Antal Dyneema pad eye, this is particularly suitable for vertical loads (i.e. furlers tack in single or 2:1, textile forestay, runners, etc.). The deck shackle must be positioned so that the load direction is in the indicated green areas where it offers the maximum resistance (SWL: 2800 kg).
Length (L) 50 mm
Width (W) 51 mm
Weight 123 gr
SWL 1500 kg
Fixing screws 3 x Ø6 mm
| Paino | 0.055 kg (kilogramma) |
|---|
