UUTUUS
Antal Deck Shackle 08 for soft lashing and Dyneema splicing, SWL 3000 kg
DS08
matala pad eye dyneema lenkeille SWL3000 kg

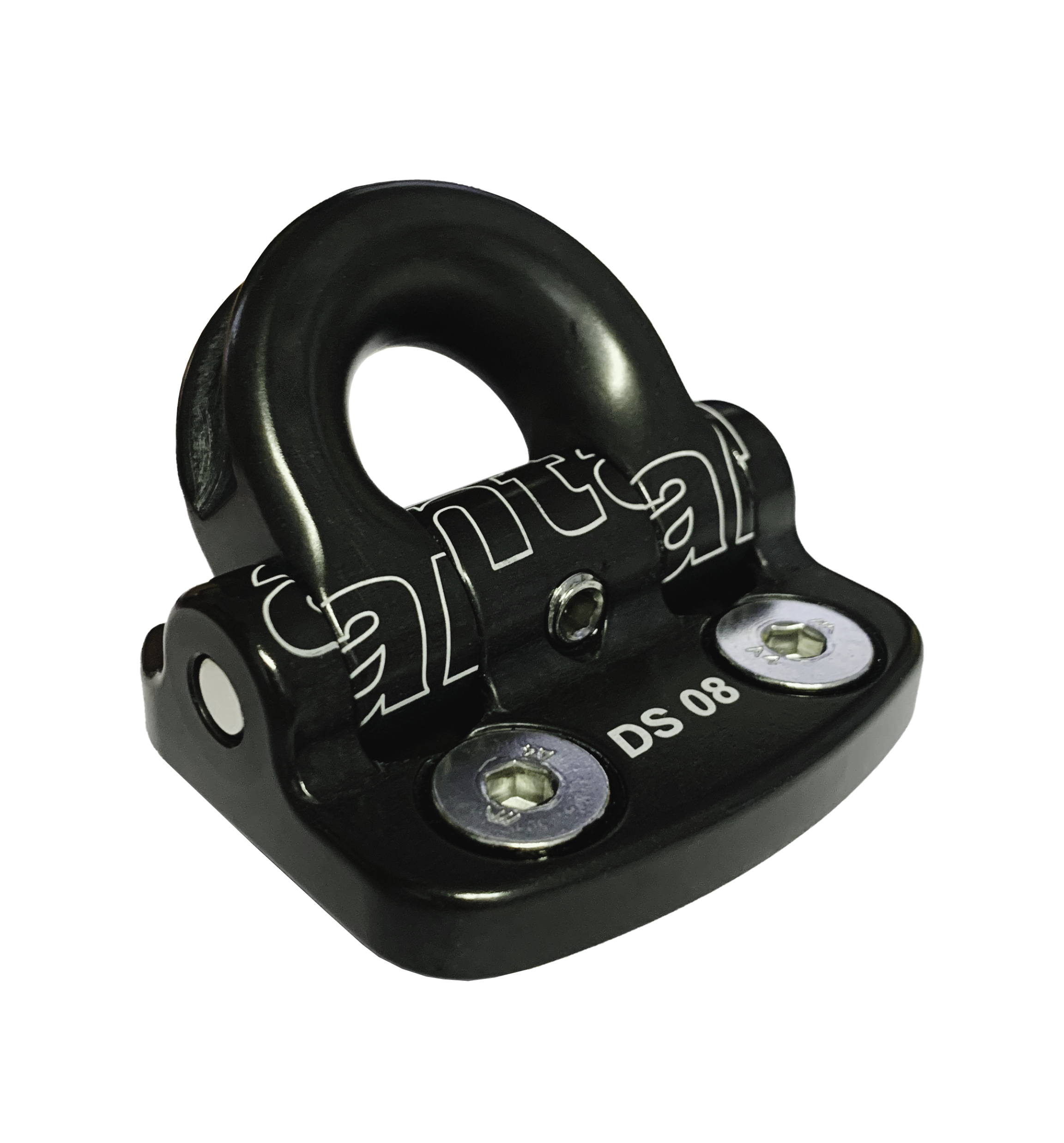

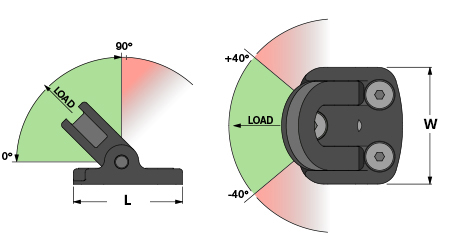

This new DS08 is a folding aluminum deck shackle suitable for soft lashing and splicing as a Dyneema loop. Compared to the Antal Dyneema pad eye, this is particularly suitable for vertical loads (i.e. furlers tack in single or 2:1, textile forestay, runners, etc.). The deck shackle must be positioned so that the load direction is in the indicated green areas where it offers the maximum resistance (SWL: 2800 kg).
Length (L) 63 mm
Width (W) 68 mm
Weight 176 gr
SWL 2800 kg
Fixing screws 3 x Ø8 mm
| Paino | 0.175 kg (kilogramma) |
|---|
