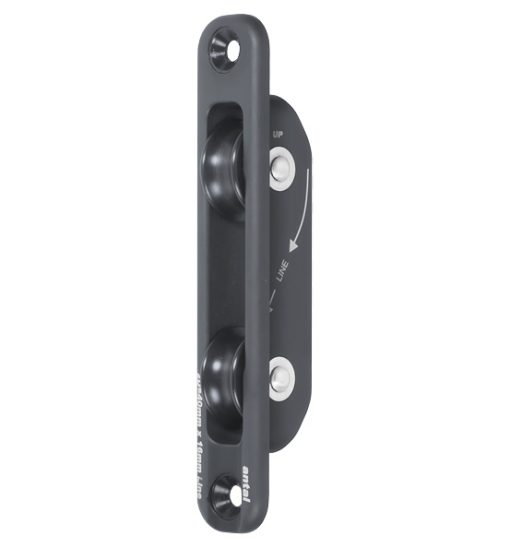

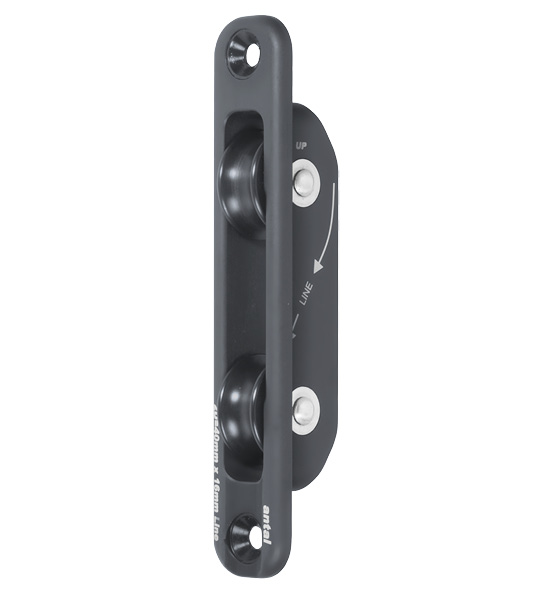

Antal DUAL SHEAVE MAST BLOCK D 34
00418/D
Exit box, 34 mm kehrä 8 mm 2:lla kehrällä
12 different sizes with diameters from 40 to 140 mm for working loads (SWL) up to 9000 kg. Hard black anodized aluminium frame with insulating washers for corrosion protection. Resin sheaves (aluminium sheaves for 100, 120 and 140 mm only) with composite fibre main bearing (not on size 40) and double side self-captive ball bearing.
Length (A) 158 mm
No. sheaves 2
Ø sheave (D) 34 mm
Side bearing Delrin balls
Weight 140 gr
Ø max line 12 mm

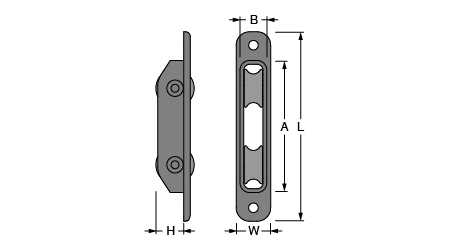

A 158 mm
B 110 mm
SWL 1500 kg
Material Aluminum
Sheave material Plastic
Fixing screws 2 x countersunk
Ø screws 8 mm
Katso Antal mast block mittapiirustus tiedot tästä!
LSSISTER: 25000418, 2500518, 25000618, 25000718, 25001018,
