Exit ploki 70mm – Selden Sheave box AL-70 kit MK2

Selden Exit ploki 70mm – Sheave box AL-70 kit
Selden tuotenumero: 505-016-10

Max 12mm köysi tai 10 / 5 mm köysi vaijeri- yhdistelmänostin.
max tapin kuorma 12kN.
Sis Exit plokit, kiinnikkeet sekä ohjeet.

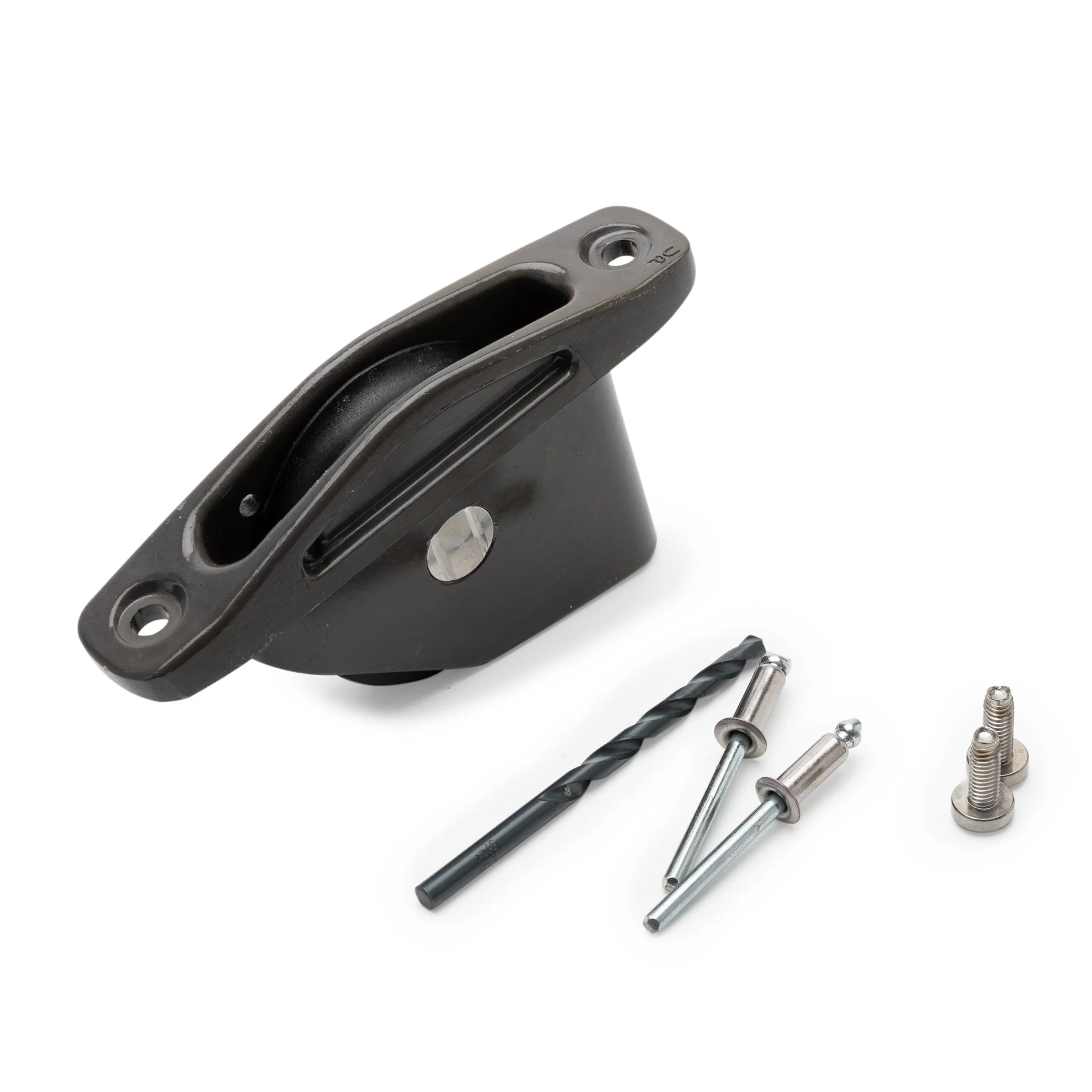

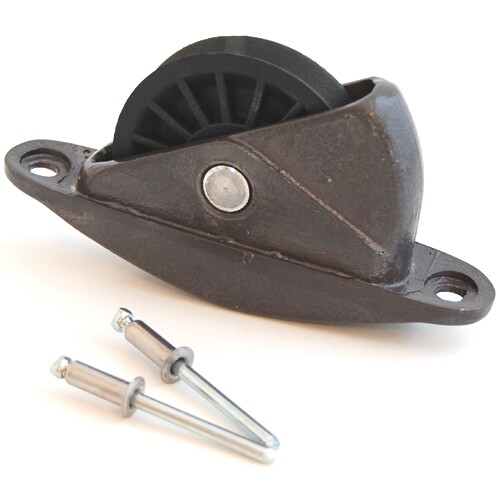

AL-70 sheave box – Aluminium sheave box with 70 mm composite sheave, fasteners included
The kit includes both M6 self-tapping screws with a 5,3 mm drill-bit as well as 6,4 mm Monel pop-rivets. An instruction for assembly is also included.

This sheave box can be used for halyards and spinnaker pole lift.

Max line size: ø 12 mm.
Safe work load: 1200 kg
