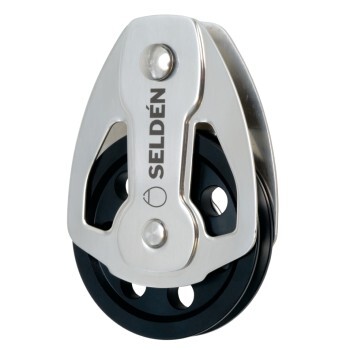

Selden High load 45mm vaijeri pylpyrä max 4mm vaijeri – 6mm Dyneema
SKU: 404-201-01R
Vahva HIGH LOAD ploki vaijerille tai Dyneemalle, paikkoihin joissa suuret staattiset kuormat kuten takastaagi.
HIGH LOAD PBB
45 mm plain bearing for high load applications such as backstay. Stainless cheeks and composite sheave with polymer plain bearing. Features a ø8 mm pin and a bushing for ø10 mm application.
This block is optimised for 4mm soft wires (7×19 strand) or 6mm Dyneema / Spectra core.
TECHNICAL FEATURES
• Stainless steel, electro polished cheeks, anodised aluminium sheave and polymer plain bearing bushing.
• Outer side plates to increase breaking load – but still optimising the weight.
• The sheave is V-shaped for wires.
• Light holes to reduce weight.
• Two polyamide washers on pin/bushing to reduce play between wire terminal and cheeks.

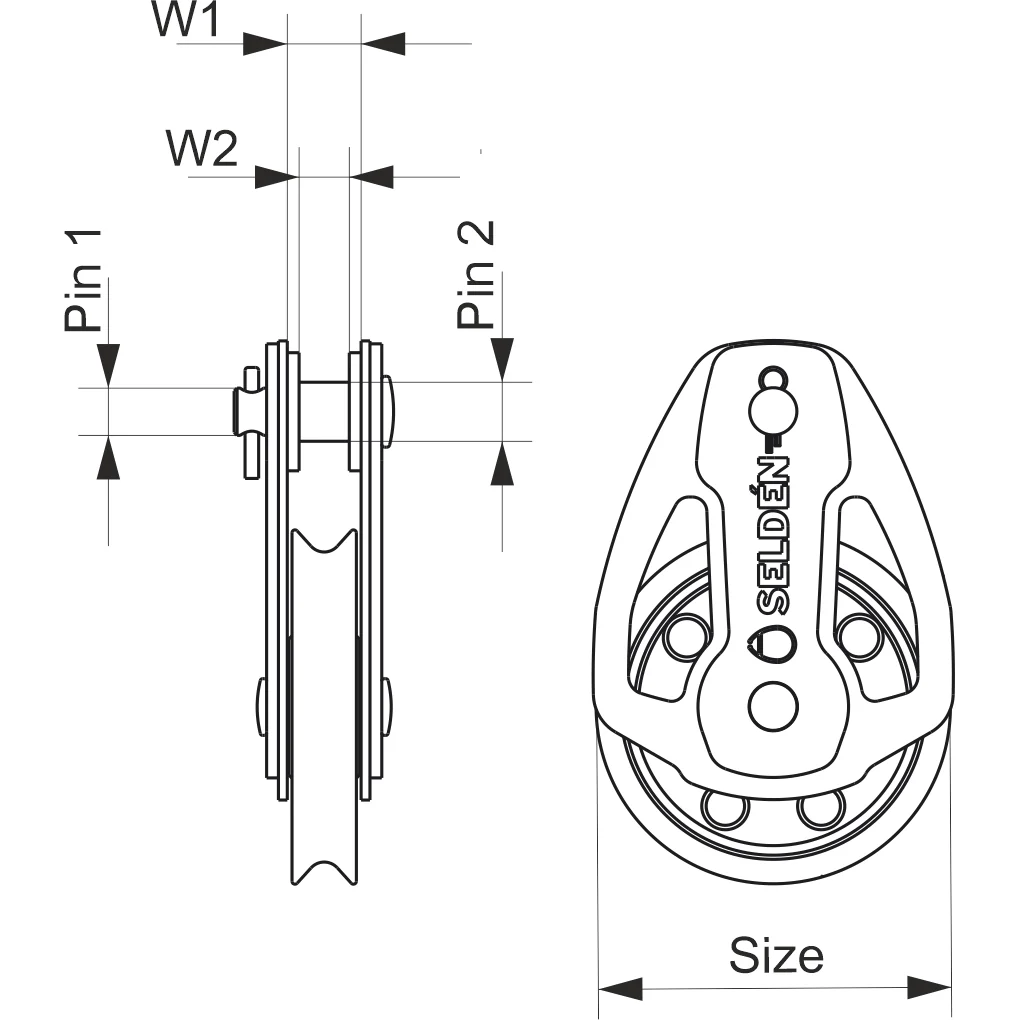

Specifications:
SubType: HLPBB
Size: 45mm
SWL: 1100 kg
W1: 9.50
Pin1: 8.00
Pin2: 10.00
Breaking Load (kN): 2200 kg
MaxBackstayW: 5 mm
MaxSheaveW: 4 mm
| Paino | 0.095 kg (kilogramma) |
|---|---|
| Koko | 45mm |
| Tyyppi | HL ploki |
| Malli | Single |
| Tuotemerkki | Selden |
