Selden High load vaijeri pylpyrä -6mm Br 3000kg max 6mm vaijeri/ 8mm Dyneema
406-101-01R
High load 60 Single block -ploki 60mm
Vahva HIGH LOAD ploki paikkoihin joissa suuret staattiset kuormat kuten takastaagi
HIGH LOAD PBB
60 mm plain bearing for high load applications such as backstay. Electropolished stainless cheeks and black anodized aluminium sheave with polymer plain bearing. Features a ø8 mm pin and a bushing for ø10 mm application.
This block is optimised for ø5 mm soft wires (7×19 strand) or Dyneema / Spectra core.
TECHNICAL FEATURES
• Stainless steel, electro polished cheeks, anodised aluminium sheave and polymer plain bearing bushing.
• Outer side plates to increase breaking load – but still optimising the weight.
• The sheave is V-shaped for wires.
• Light holes to reduce weight.
• Two polyamide washers on pin/bushing to reduce play between wire terminal and cheeks.
APPLICATIONS
• Designed for wire applications subject to rig loads, e.g. backstays.

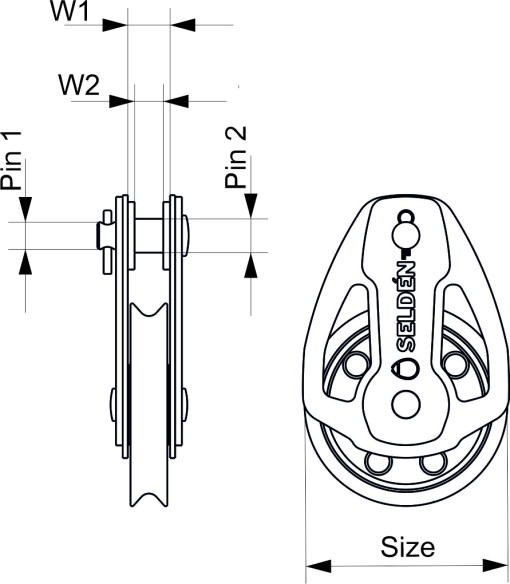

Specifications
Weight: 192.00 g
Size: 60
SWL: 1500 kg
Width B1: 12.50
Width B2: 8.50
PinDiam: 8.00
PinDiam2: 10.00
MaxBackstay W: 6 mm
MaxSheave W: 5 mm
| Paino | 0.192 kg (kilogramma) |
|---|---|
| Koko | 60mm |
| Tyyppi | HL ploki |
| Malli | Single |
| Tuotemerkki | Selden |
