Selden High load vaijeri pylpyrä -80mm Br 5500kg max 7mm vaijeri/ 8mm dyneema
SKU: 408-101-01R
High load 80 Single block -ploki 80mm
Vahva HIGH LOAD ploki paikkoihin joissa suuret staattiset kuormat kuten takastaagi
HIGH LOAD PBB
80 mm plain bearing for high load applications such as backstay. Electropolished stainless cheeks and black anodized aluminium sheave with polymer plain bearing.
This block is optimised for ø7 mm soft wires (7×19 strand) or Dyneema / Spectra core.
TECHNICAL FEATURES
•Stainless steel, electro polished cheeks, anodised aluminium sheave and polymer plain bearing bushing.
• Outer side plates to increase breaking load – but still optimising the weight.
• The sheave is V-shaped for wires.
• Light holes to reduce weight.
• Two polyamide washers on pin/bushing to reduce play between wire terminal and cheeks.
APPLICATIONS
• Designed for wire applications subject to rig loads, e.g. backstays.
SubType: single
Size: 80
SWL: 2750 kg

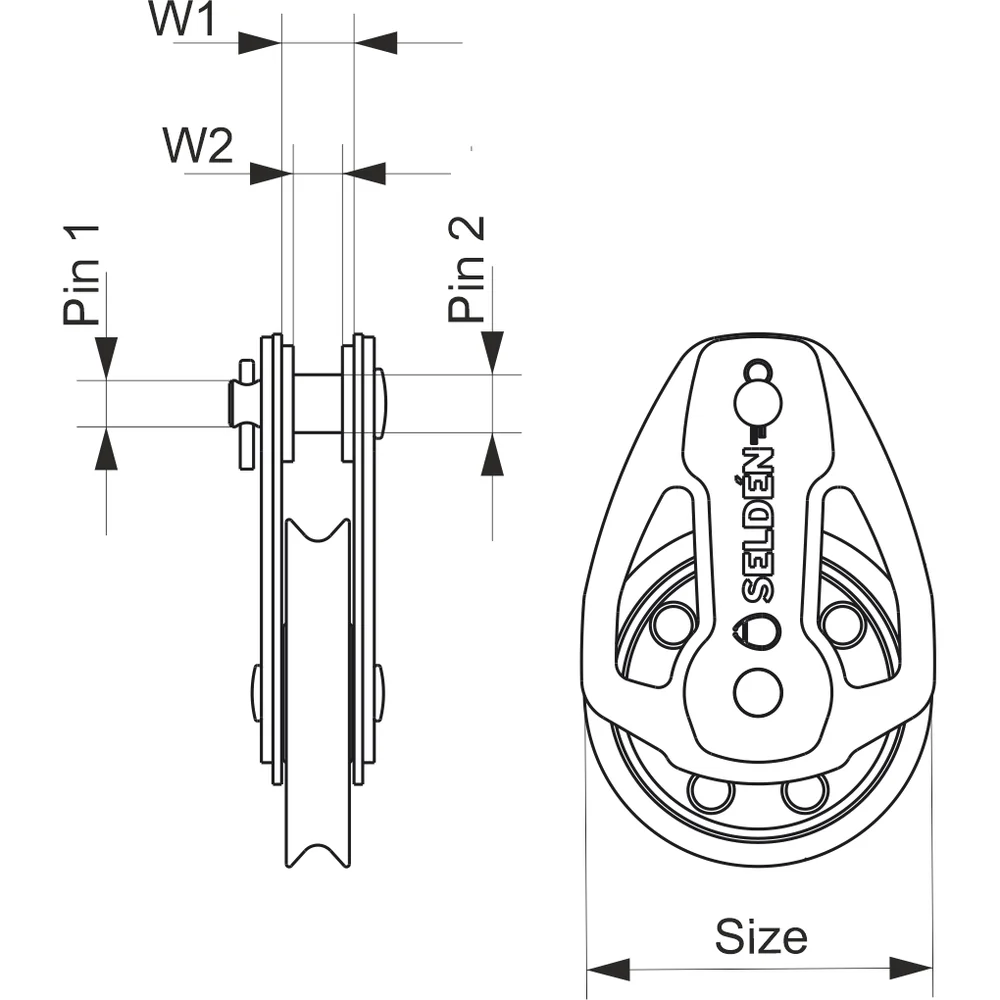

W1: 15.50
W2: 10.70
Pin1: 12.70
Breaking Load (kN): 5500 kg
MaxBackstayW: 8 mm
MaxSheaveW: 7 mm
| Paino | 0.464 kg (kilogramma) |
|---|---|
| Koko | 80mm |
| Tyyppi | HL ploki |
| Malli | Single |
| Tuotemerkki | Selden |
