Itseskuuttavan ST22 kiskon kansikiinikkeet nivele

Selden Itseskuuttavan kiskon kansikiinikkeet hst
SKU: 442-206-10

Kiinnitys joko ruffin katolle tai kannelle. Voidaan irroittaa sokkatapeista.

Fittings for installations to the coach side or deck. Clevis pins connect the consols to the deck fittings allowing quick removal of the entire system from the boat. Ideal for sailors who occasionally want to optimize their boat for racing by use of overlapping jibs.

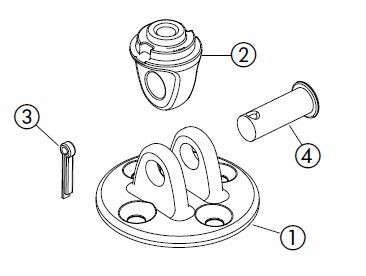

Parts included:

4 deck fittings including clevis pins
4 pcs connectors for the consoles

SELF TACKING JIB SYSTEMS

self-tacking jib makes life on board a lot easier, in particular for short handed crews. The jib sheet is led to a car which moves to leeward during the tack with no need to touch the sheet. Tacking is as simple as steering the boat through the wind.
For retro-fit installations on boats ranging from 30’ to 45 feet’, 30 mm High Beam tracks with a standard radius and standard length can be ordered from stock. The side consols, deck fittings and a car are added to complete the system. A ball-joint allows for perfect alignment of the track to a 90° angle to the direction of load for an easy installation to the deck or coach side

This is how to order a self tacking system:

SELF TACKING JIB SYSTEMS
OVER THE FORE DECK
This is the simplest and most common arrangement. The sheet is led from the clew, through a single block on the car, through a block at the bow and back to the cockpit

UP THE MAST
hrough a block at the foot of the mast and back to the cockpit. The deck light and the steaming light on the mast might need to be relocated. Sheet cranes are available for boats fitted with VPS (Verticle Pole Stowage) system.

1. SHEET ARRANGEMENT OPTIONS
2. SELECT TRACK
3. SELECT CAR
4. SELECT DECK FITTING
5. ORDER SIDE CONSOLS
Article number 443-200-10 is a complete kit including one for each side.
. SELECT BLOCK
Single or single/becket depending on sheet arrangement.

Fittings for installations to the coach side or deck. Clevis pins connect the consols to the deck fittings allowing quick removal of the entire system from the boat. Ideal for sailors who occasionally want to optimize their boat for racing by use of overlapping jibs.

Parts included:
4 deck fittings including clevis pins
4 pcs connectors for the consoles.

Katso tästä Selden Asennus ohjeet!
