Selden Itseskuuttavan kiskon kansikiinikkeet rst
Kiinnitys kannelle. Läpi kannen pysyvä kiinnitys.

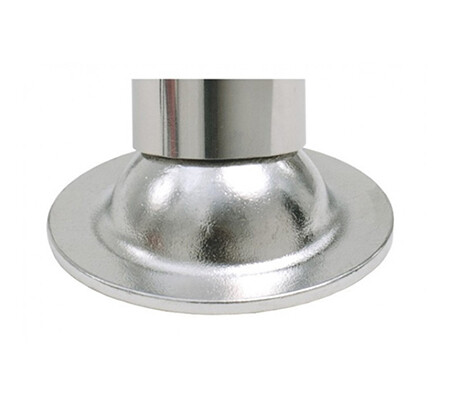

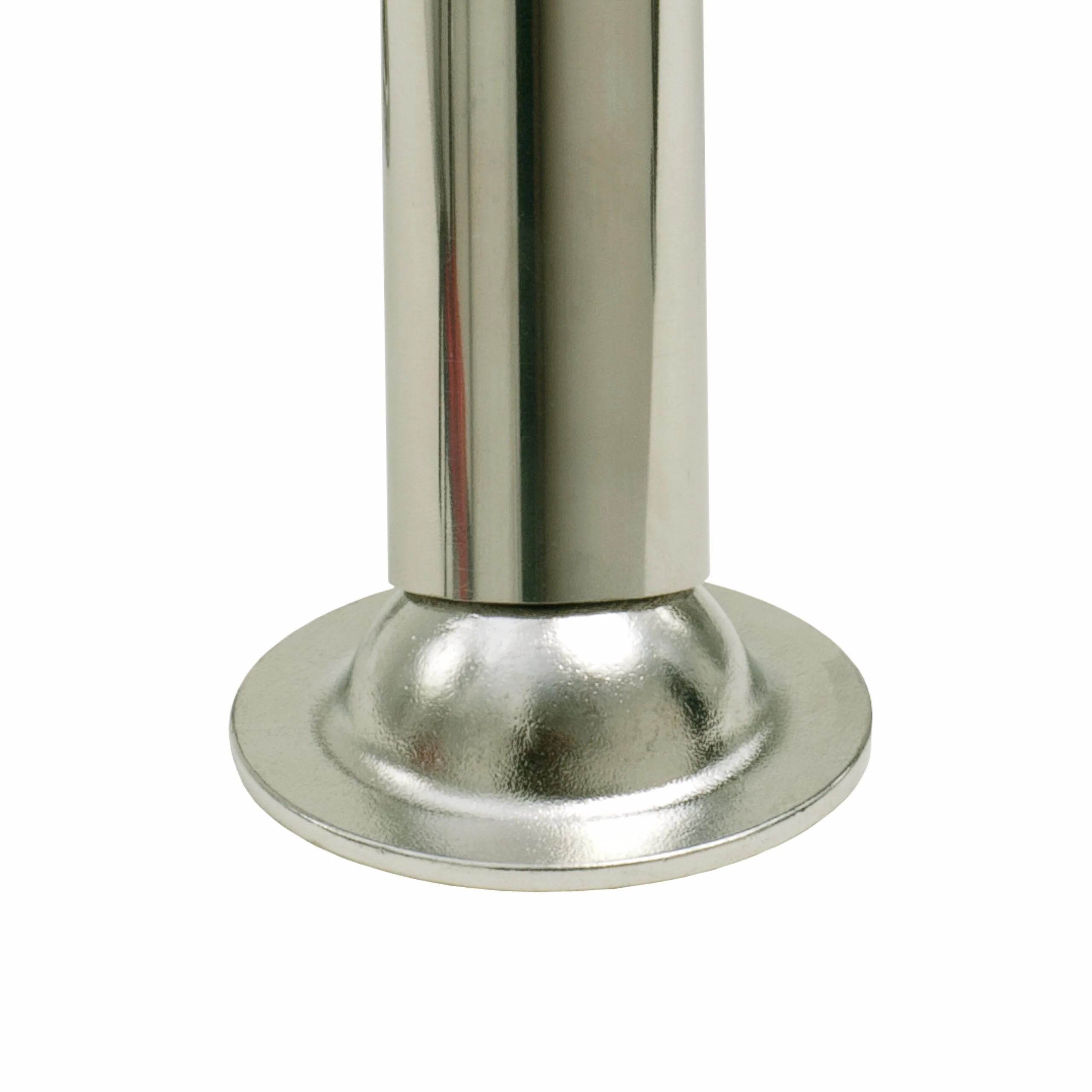

Deck fitting for a permanent installation on the deck. The fitting articulates and adapts to various deck angles. The system is fixed with a through-bolt from the underside of the deck, through the deck fitting, console and upper bracket.

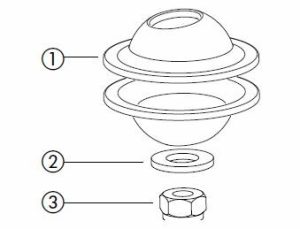

Parts included:
4 deck fittings
4 washers and nut
SELF TACKING JIB SYSTEMS
self-tacking jib makes life on board a lot easier, in particular for short handed crews. The jib sheet is led to a car which moves to leeward during the tack with no need to touch the sheet. Tacking is as simple as steering the boat through the wind. <
For retro-fit installations on boats ranging from 30’ to 45 feet’, 30 mm High Beam tracks with a standard radius and standard length can be ordered from stock. The side consols, deck fittings and a car are added to complete the system. A ball-joint allows for perfect alignment of the track to a 90° angle to the direction of load for an easy installation to the deck or coach side
This is how to order a self tacking system:
SELF TACKING JIB SYSTEMS
OVER THE FORE DECK
This is the simplest and most common arrangement. The sheet is led from the clew, through a single block on the car, through a block at the bow and back to the cockpit
UP THE MAST
Through a block at the foot of the mast and back to the cockpit. The deck light and the steaming light on the mast might need to be relocated. Sheet cranes are available for boats fitted with VPS (Verticle Pole Stowage) system.
1. SHEET ARRANGEMENT OPTIONS
2. SELECT TRACK
3. SELECT CAR
4. SELECT DECK FITTING
5. ORDER SIDE CONSOLS
Article number 443-200-10 is a complete kit including one for each side.
6. SELECT BLOCK
Single or single/becket depending on sheet arrangement.
Katso tästä Selden Asennus ohjeet!
29228-442-200-10, 29228-442-206-10, 29228-442-011-40, 29228-442-011-41, 29228-442-206-10, 29228-443-179-01,
| Paino | 0.406 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
