IWS 45 Headboard car for Seldén mast sections C137, C153, C180
SKU: 511-729-04

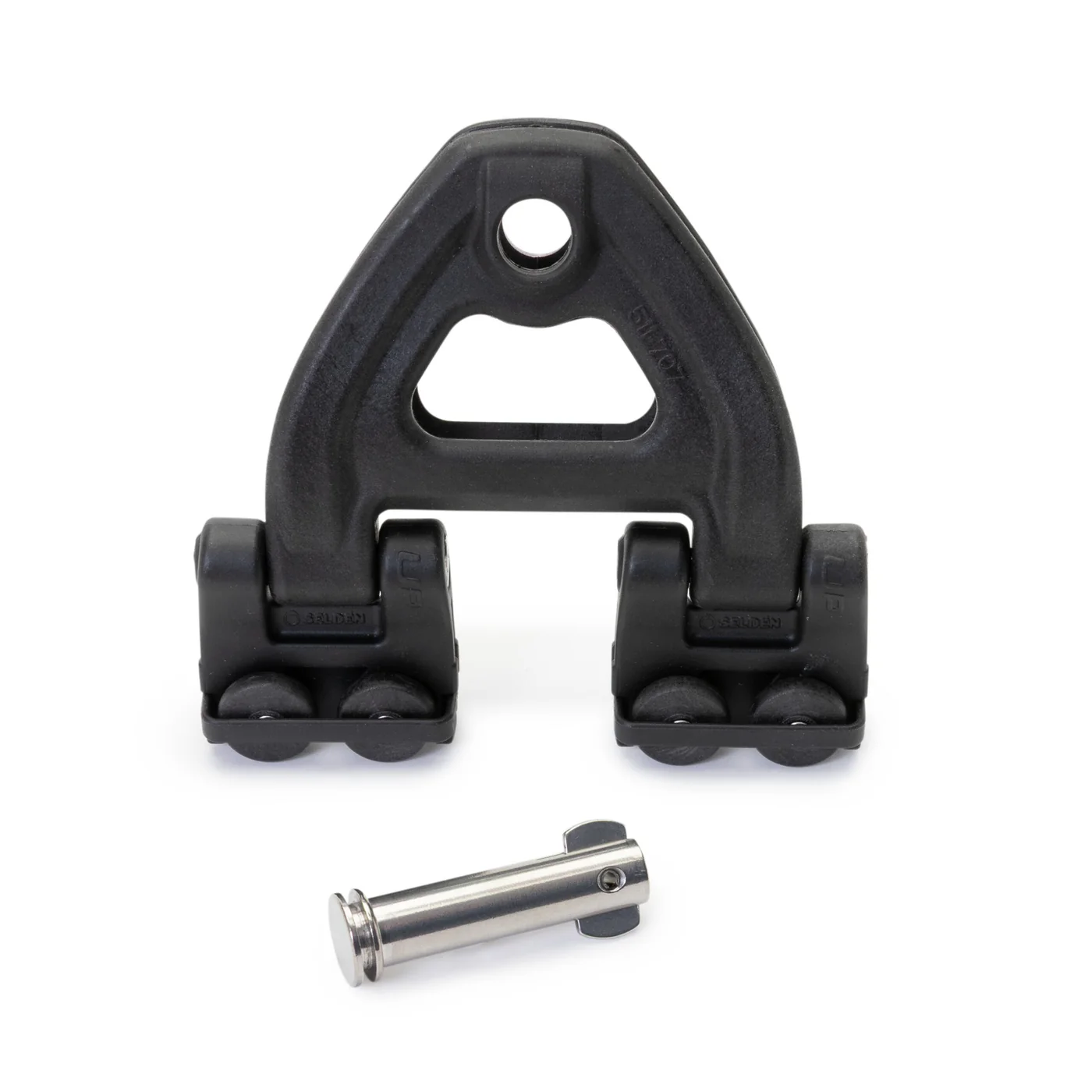

This headboard car assembly consists of two IWS 45 cars and a composite headboard toggle with a Drop-nose pin for easy connection with the headboard of the sail.
The IWS car simplifies hoisting, reefing and dousing and is used for Seldén’s newest C-sections. The side load created by the full-batten is taken up by the wheels as the slider tilts to the side and a buffer bearing centers the slider in the groove. The mast groove and the car makes for a perfect match handling loads from all direction without any extra hardware fitted to the mast.
Model: IWS 45
Mast: C137,C153,C180
SWL+lat: 2.40 kN
SWL+long: 4.80 kN
RM30Mono-MH: 90
RM30Mono-FR: 70
RM30Multi-MH: 122
RM30Multi-FR: 95
| Paino | 0.102 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
