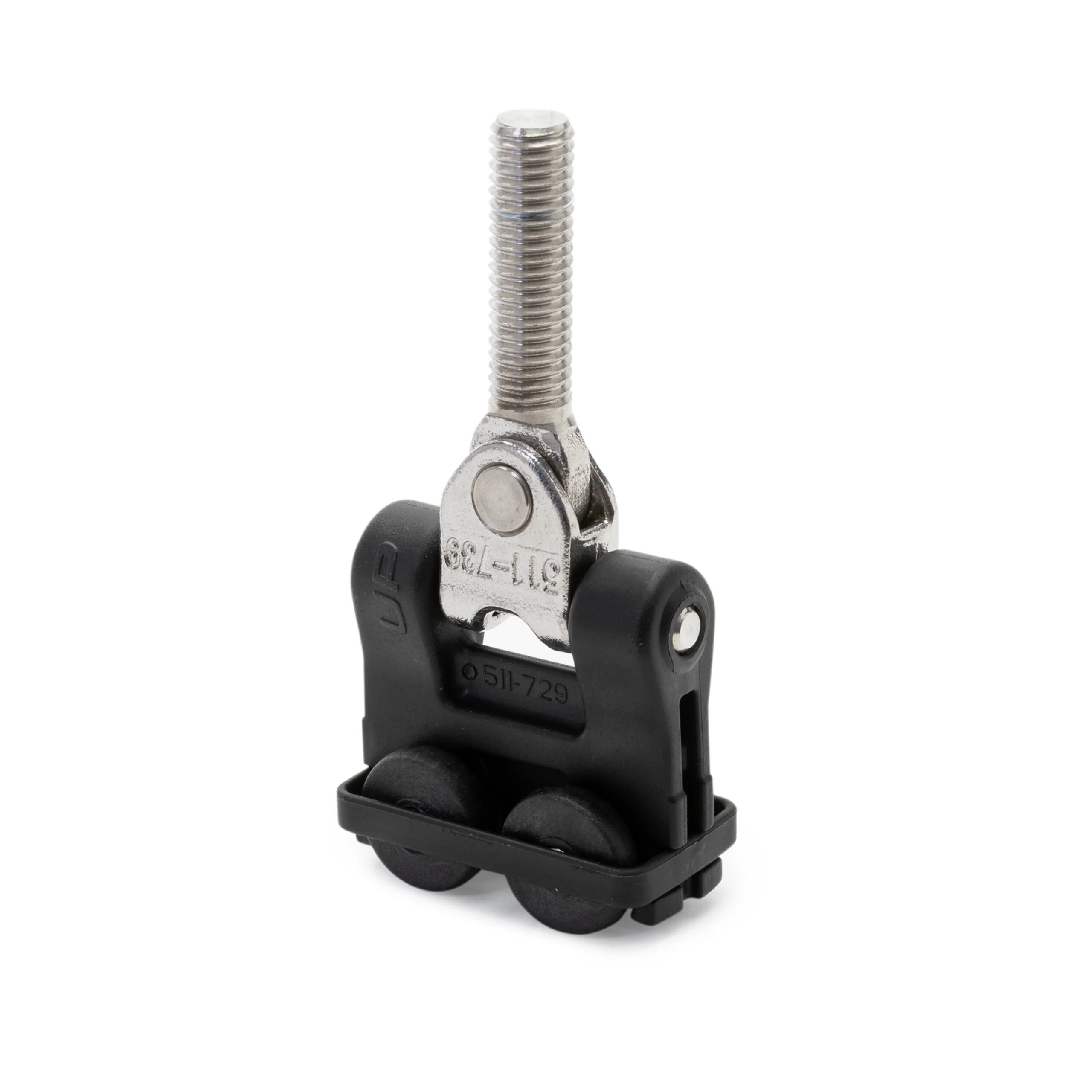

IWS 45 fullbatten car with M10 stud – for Seldén mast sections C137, C153, C180
SKU: 511-729-03
This composite fullbatten car features a M10 threaded stud and can be used with corresponding batten receptacles.
The IWS car simplifies hoisting, reefing and dousing and is used for Seldén’s newest C-sections. The side load created by the full-batten is taken up by the wheels as the slider tilts to the side and a buffer bearing centers the slider in the groove. The mast groove and the car makes for a perfect match handling loads from all direction without any extra hardware fitted to the mast.
Model: IWS 45
Mast: C137,C153,C180
SWL+lat: 1.20 kN
SWL+long: 3.00 kN
RM30Mono-MH: 160
RM30Mono-FR: 120
RM30Multi-MH: 215
RM30Multi-FR: 162
| Paino | 0.102 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
