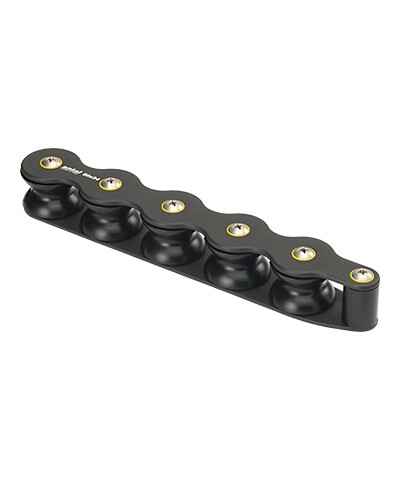

Tulip organizer with 5 sheaves, sheave Ø 45, SWL 1000 kg
Antal Kansijärjestelmä 5x tulip 50 sarja
Tuotenumero: T550
Tulip organizer with 5 sheaves Ø 45, SWL 1000 kg
With Tulip sheaves organizers can also be made. Batteries from 2 to 6 sheaves are available, with diameters 45 and 60 mm. The 45 mm sheaves are in high resistance resin, with a “self-captive” double side ball bearing. The 60 mm sheave, with an axial bearing in composite fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon-coated aluminium and can handle very high loads.
Length (L) 289 mm
Width (W) 45 mm
Height (H) 42 mm
Ø pad eye 52 mm
No. sheaves 5
Ø sheave (D) 45 mm
Side bearing Delrin balls
Weight 0,72 kg
Ø max line 12 mm
B 52 mm
SWL 1000 kg
Material Aluminum
Sheave material Plastic
Fixing screws 6 x Ø6 mm
