Selden RCB Trysail track gate. pääty, kiinnikkeet 12 vaunua
Selden tuote numero: 515-525-31
Trysail kisko lukittavalla RCB vaunulla purjeen syöttöavarten. Kisko pituus 2300mm, niittikiinnitys
Gate kisko sisältää aina 12 RCB trysail vaunua, pääty stopparin
Lisäksi tarvitaan jatko kiskoja 515-525-35, tai 515-523-02 ja tarvittaessa lisävaunuja 511-713
2300 aluminium track to be pop riveted to the side of the luff groove. This is the lower track of a try sail system. Complete with additional 2300 mm tracks, article number 515-525-35.

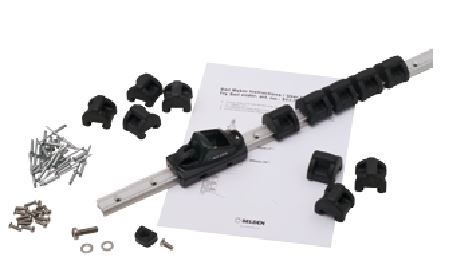

515-525-31 includes:
• 25 pop rivets
• 12 try sail sliders
• Pin stop car
• End stop to be fitted above the top track.
Trysail system
In stormy weather, when your 2nd or 3rd reef of the mainsail just isn’t enough, the way to go is with a trysail.
A trysail is a loose-footed, fairly flat sail made from heavy sailcloth, but with a luff length and foot length considerably shorter than your regular mainsail.
It is hoisted on a separate track, independent of the normal luff groove.
The trysail track is fitted beside the luff groove on the aft side of the mast and runs all the way to deck level. That way you can always have your trysail fitted to the track, ready to be used.
hen using a trysail, the end of the main boom is secured to the deck.

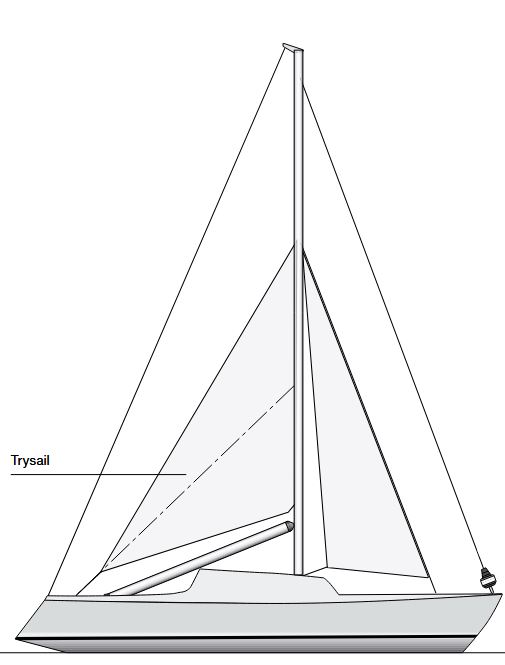

Sheeting point should be according to the illustration.
If trysail luff length is not available from the yacht designer, our general recommendation is that the trysail should reach 55-65% of the foretriangle height. The track should end approximately 0.5 m below checkstays/ runner attachments, if any.
We recommend fitting three sliders at the head and tack of the sail (c/c 50 mm), remaining sliders to be
fitted c/c 400 mm.
Seldén Silicone lubricant (Art. No. 312-506) can be used on the track to minimise friction.
| Paino | 1.485 kg (kilogramma) |
|---|
