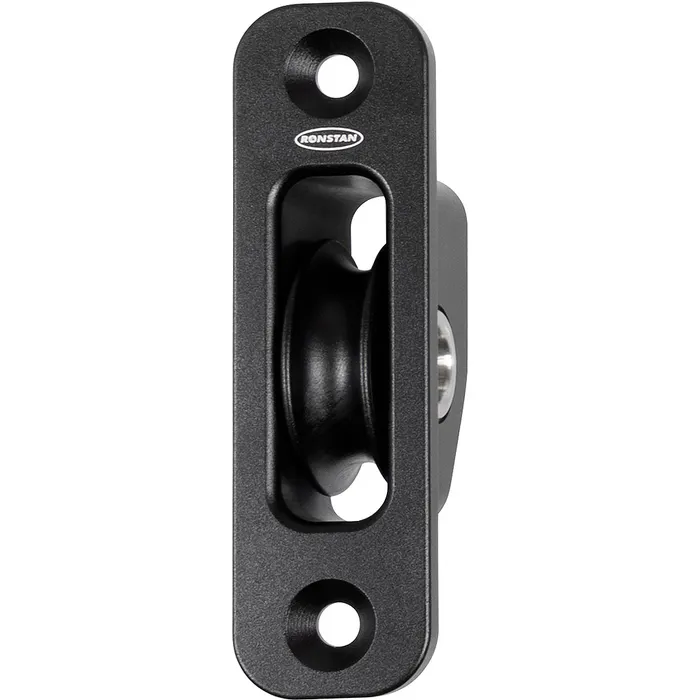

Series 40 Ball Bearing Exit Block
40mm Acetal Sheave, Anodised Aluminium Housing, Requires 2x 6mm (1/4″) Fasteners
Exit Blocks minimise friction in lines passing through the deck or exiting masts and booms.
The RF45711 exit block incorporates our 2-stage bearing system using ball bearings to minimise friction and a secondary full-contact bearing to maintain low friction across the full working load range.
Specifications
Product Specifications
Type of Block Exit
B.L. (kg) 2000
M.W.L. (kg) 800
Max. Rope diameter (mm) 10
Weight (g) 77
Fastener Ø (mm) 6
Qty. Fasteners 2
Notes: MWL = 400kg dynamic load, 800kg static load.

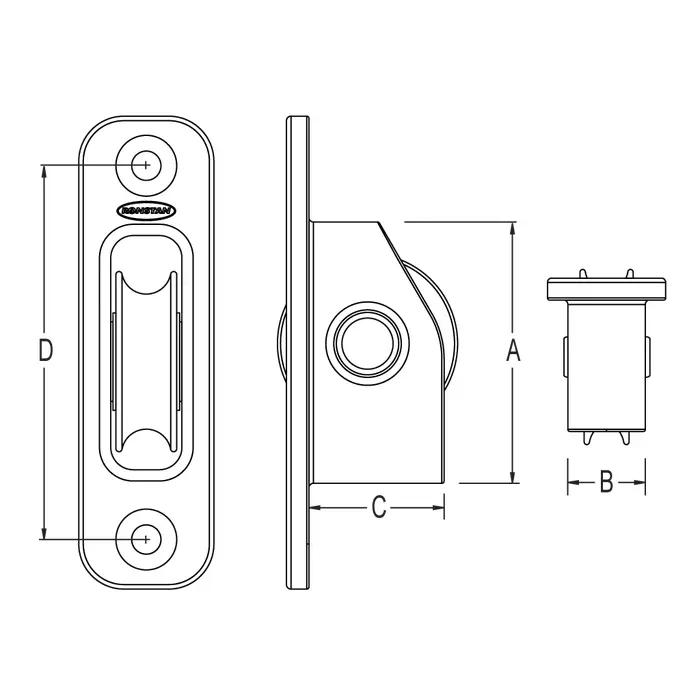

A (mm) 58
B (mm) 22
C (mm) 30
D (mm) 83
Materials
Sheave and ball bearings: High compression strength acetal.
Housing: Anodised aluminium.
