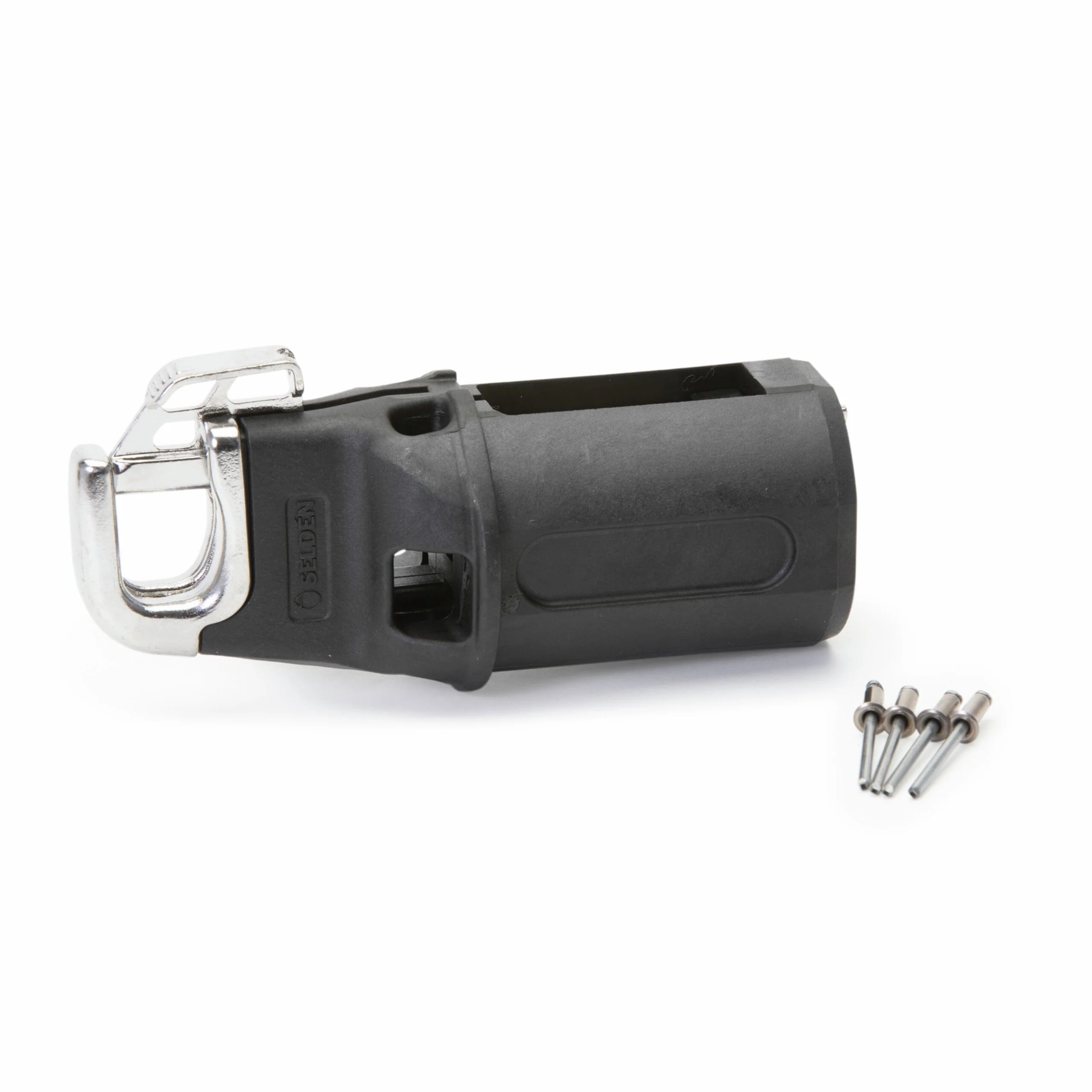

Selden Spinaakkeripuomin päätyhela 72mm Selden putkeen
SKU: 534-854-11
Valmistettu vahvasta komposiitista, trip trigger lukitus toiminnolla.
Sopii putkeen jonka sisähalkaisja on 67mm.
Sisältää Monel-niitit 4 x 167-006 ( Ø4.8×16.5 )
Spinnaker Pole Fitting, Size Medium, for pole section ø72 mm, Trip-Trigger
The end fitting is made of glass fibre reinforced polyamide composite. This material makes for a combination of low weight and strength and it also prevents damage to boat or mast when the pole is on the fore deck. The claw has a well rounded stainless chafe guard, preventing damage to sheet and guy.
The stainless, spring loaded plunger is operated at the end fitting or with a release line. Attachment holes for spinnaker pole lift and downhaul or bridles.
The Trip-Trigger function locks the claw in open position and closes it automatically when a windward guy is entered.
The inner part of this fitting has a diameter of ø64 mm and is used for Selden Ø72/84/96 mm alu poles and ø77/88/90 mm carbon poles.
4 Monel pop-rivets ( Ø4,8×12,7 mm) and a 0,5 mm thick spacer shim are included in the kit. The pop-rivets are only to be used for installation in an aluminium section – not in carbon fiber.
Connect only to Selden’s Ø 30 mm Spinnaker pole eyes 534-531-01, 534-528-01, 534-529-01
29048-534-779, 29048-534-865-01, 29048-534-854-01,
| Paino | 0.488 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
