Selden Spinaakkeripuomin päätyhela Ø 72mm putkeen
SKU: 534-854-01
Valmistettu vahvasta komposiitista, ei trip lukitus toimintoa.
Sopii putkeen jonka sisähalkaisja on 67mm.

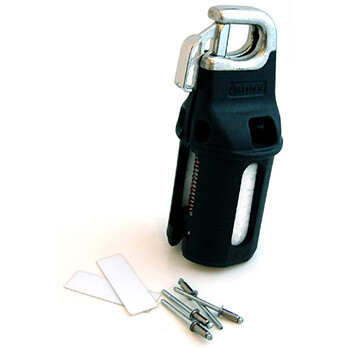

Spinnaker Pole Fitting, Size Medium, for pole section Ø72 mm
The end fitting is made of glass fibre reinforced polyamide composite. This material makes for a combination of low weight and strength and it also prevents damage to boat or mast when the pole is on the fore deck. The claw has a well rounded stainless chafe guard, preventing damage to sheet and guy.
The stainless, spring loaded plunger is operated at the end fitting or with a release line. Attachment holes for spinnaker pole lift and downhaul or bridles.
The inner part of this fitting has a diameter of ø64 mm and is used for Selden Ø 72/84/96 mm alu poles and Ø77/88/90 mm carbon poles.
4 Monel pop-rivets (Ø 4,8×12,7 mm) and a 0,5 mm thick spacer shim are included in the kit. The pop-rivets are only to be used for installation in an aluminium section – not in carbon fiber.
Connect only to Selden’s Ø 30 mm Spinnaker pole eyes 534-531-01, 534-528-01, 534-529-01, 534-507-01 or 534-529-02.
29048-534-779, 29048-534-865-01, 29048-534-854-11,
| Paino | 0.473 kg (kilogramma) |
|---|---|
| Tuotemerkki | Selden |
