Selden Spinaakkeripuomin trigger päätyhela Ø84mm selden putkeen
SKU: 534-854-13
Valmistettu vahvasta komposiitista, trip trigger lukitus toiminnolla
Sopii putkeen jonka sisähalkaisja on 64mm. Nailon Adapteri 84mm ja 96mm putkeen hankittava erikseen
● 84mm selden putkeen adpateri 534-781
● 96mm selden putkeen adpateri 534-782
Sisältää Monel-niitit 4 x 167-006 ( Ø 4.8×16.5)

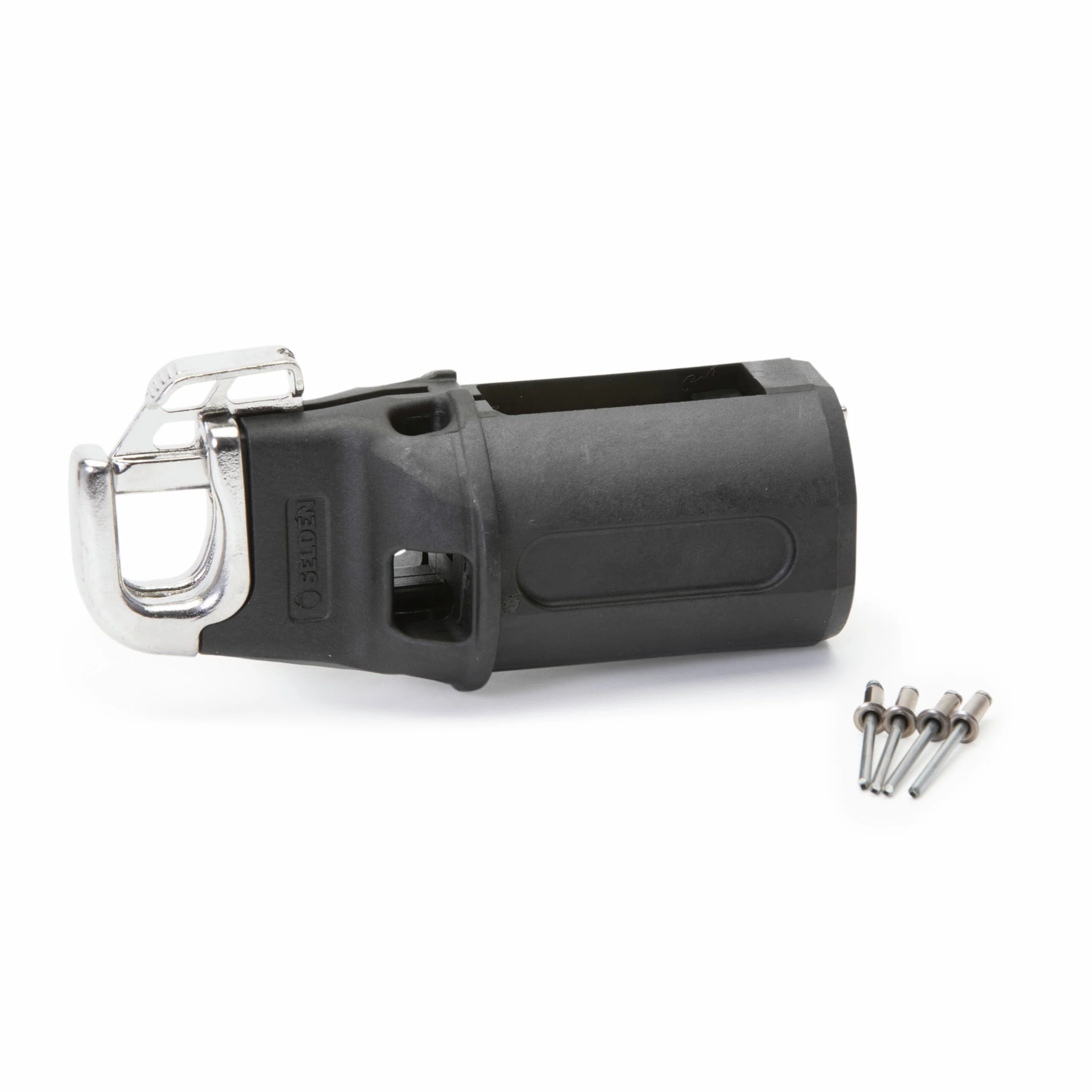

Spinnaker Pole Fitting, Size Medium, for pole section ø84 mm, Trip-Trigger, Excluding Adapter
The end fitting is made of glass fibre reinforced polyamide composite. This material makes for a combination of low weight and strength and it also prevents damage to boat or mast when the pole is on the fore deck. The claw has a well rounded stainless chafe guard, preventing damage to sheet and guy.
The stainless, spring loaded plunger is operated at the end fitting or with a release line. Attachment holes for spinnaker pole lift and downhaul or bridles.
The Trip-Trigger function locks the claw in open position and closes it automatically when a windward guy is entered.
The inner part of this fitting has a diameter of Ø 64 mm and is used for Selden Ø72/84/96 mm alu poles and ø77/88/90 mm carbon poles.
4 Monel pop-rivets (Ø4,8×16,5 mm) and a 0,5 mm thick spacer shim are included in the kit. The pop-rivets are only to be used for installation in an aluminium section – not in carbon fiber.
Adaptor 534-781 for installation in a ø84 mm pole section has to be ordered separately.
Connect only to Selden’s Ø 30 mm Spinnaker pole eyes 534-531-01, 534-528-01, 534-529-01,
| Paino | 0.492 kg (kilogramma) |
|---|
