Spinaakkeripuomin kuulalaakeri 10˚ vaunu togglella RCB 30mm kiskoon
10˚ car for vertical pole stowage
Valmistajn tuote no: 511-585-11
RCB 30/10 vaunu ilman togglella 2:1 säätö
Sopii Selden RCB 30mm kiskoon

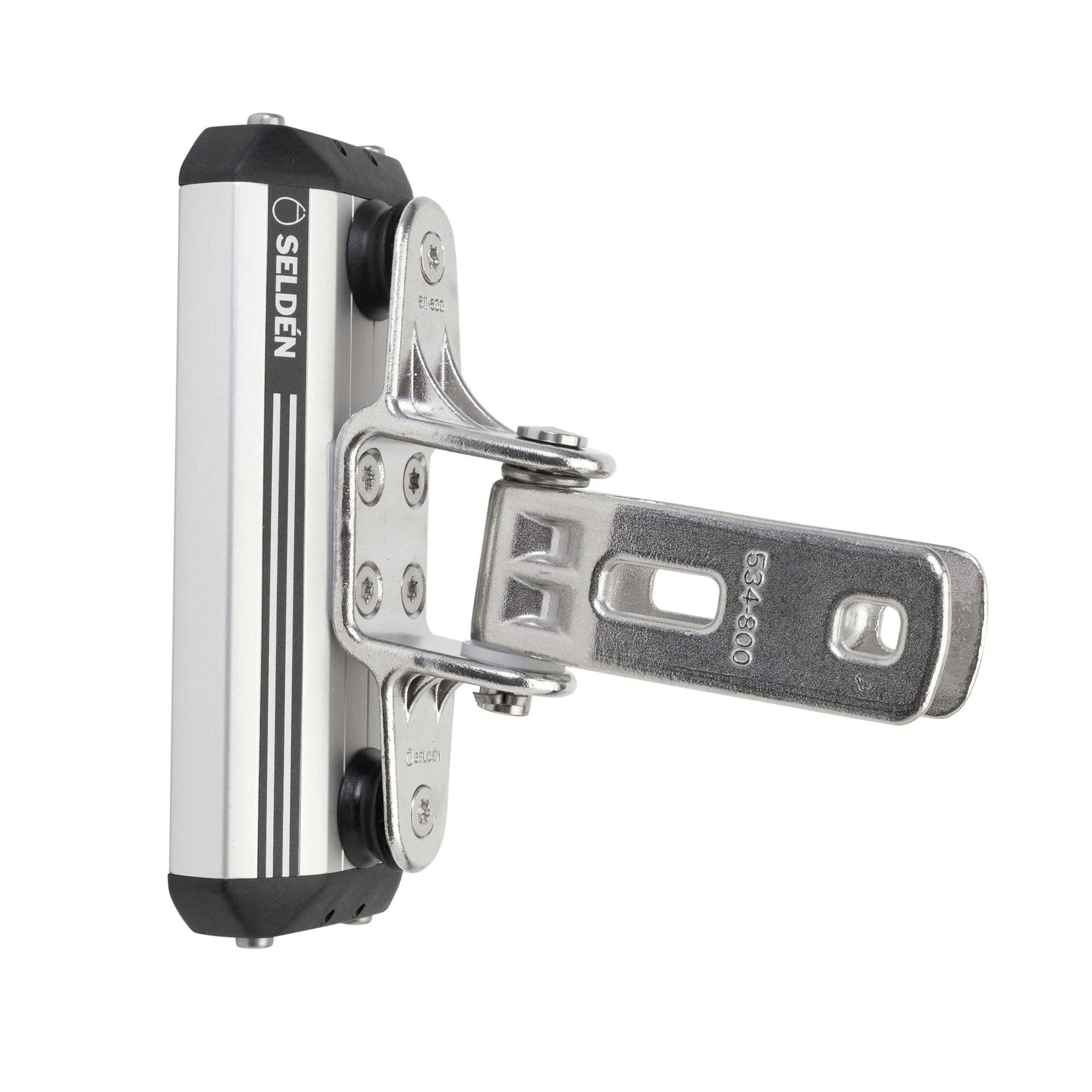

Spinnaker Pole Car, RCB30, 10° toggle for Vertical Pole Stowage, 2:1 purchase
Same as 511-585-01 but with plain bearing sheaves for 2:1 pole heel lift purchase. The car is made of extruded clear anodized aluminium with composite ends. The bracket and toggle are stainless steel and the ball bearings are made of Torlon. The toggle is angled 10° down to perform well will VPS installation (Vertical Pole Stowage). The car is delivered on a piece of track and as the ball bearings are not captive it is important to align the transport-track with the track on the mast, move the car over and fix the endstop.
Combine with a Seldén end-for-end pole fitting.
RCB stands for Round Circulating Ball bearings.
Track Type: RCB 30
Description: 10° bracket,& toggle
MaxRM: 120 kN
Purchase: 2
BT: 125.40 mm
RT: 63.00 mm
| Paino | 1.664 kg (kilogramma) |
|---|---|
| Tyyppi | RCB30 |
| Tuotemerkki | Selden |
